Bridge Assemblies

Deck Forming

Bridges that require concrete decks to be poured post precast erection will need to have forming onsite for casting.  Precast/Prestressed bridge girders can include blockouts, embedded inserts, embedded pipe for automated screed machines and other miscellanist items to help secure contractor provided formwork to girder.  Often (we coordinated with precaster) formwork can be installed prior to installation for exterior girders to allow faster construction.

View Assembly

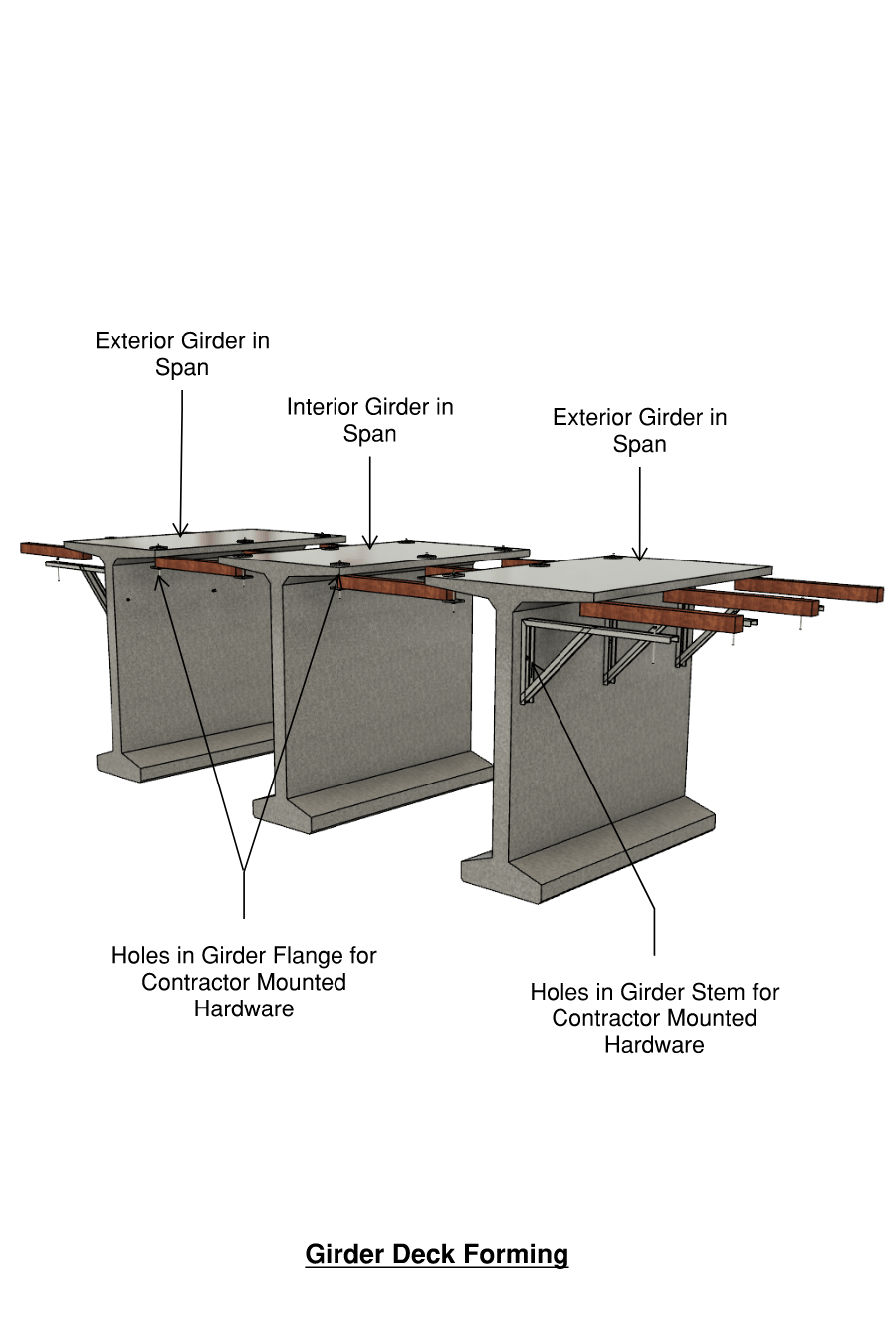

Diagram showing steel girders in span with flange holes for connector-mounted hardware and boards on top for deck forming.

Tie Rod

Box beam and voided slab bridge spans use tie rod assemblies to fasten sets of girder together.  Tie rods can either be oriented perpendicular to girder edge or on an angle based on if the bridge is located in a curve.  Recesses located beam side faces allow access to complete tie rod connection assembly once rod has been extended through girder.

View Assembly

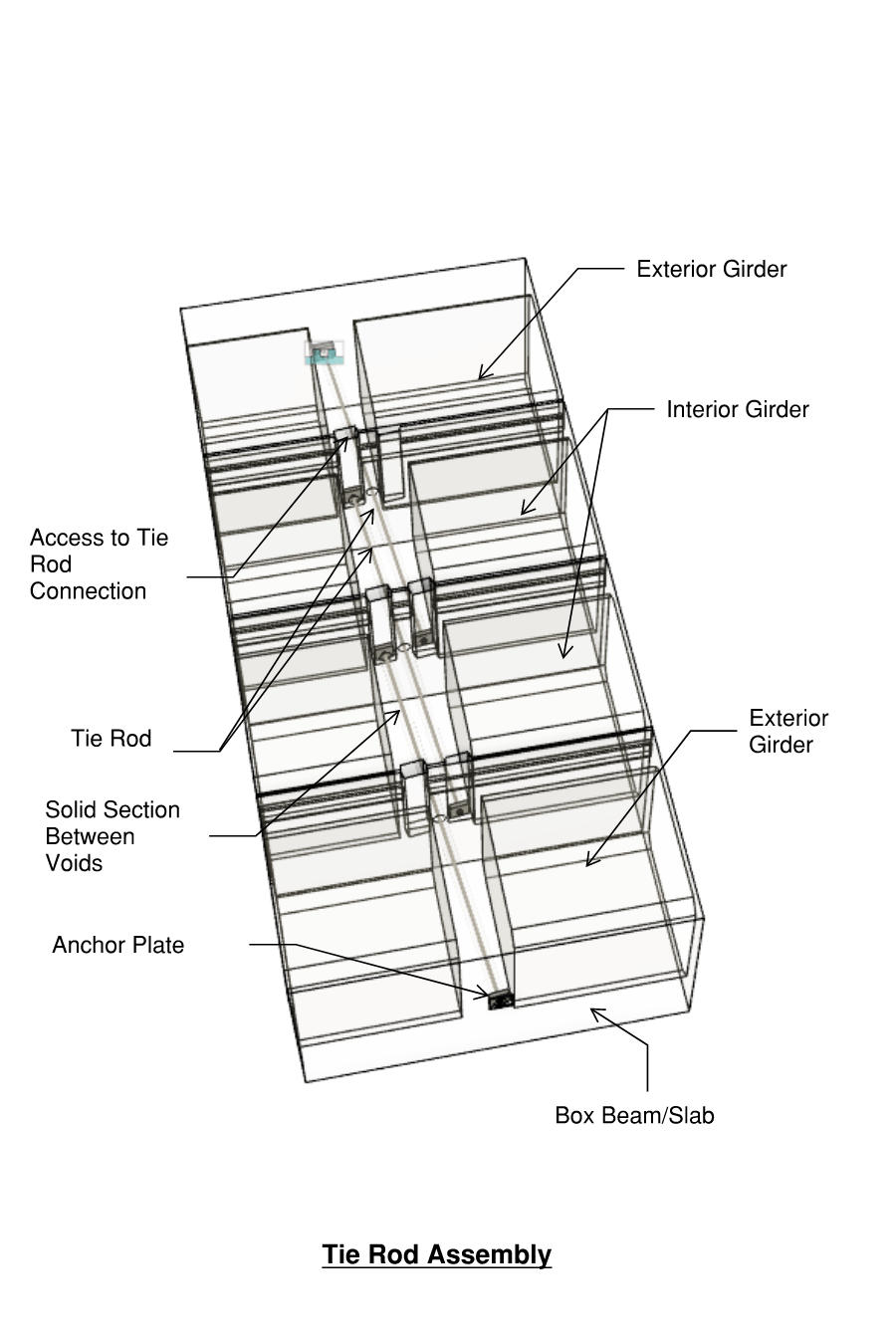

Tie rod assembly diagram showing exterior girders, interior girders, anchor plates, and solid sections between joints.

Rail Post

Rail post assemblies can be added to deck bulb tee girders.  Steel post assembly is cast into the deck bulb tee top flange with anchor bolts extending up.  Options for pouring the curb as a secondary pour at precast plant are available or curb can be cast onsite by contractor.

View Assembly

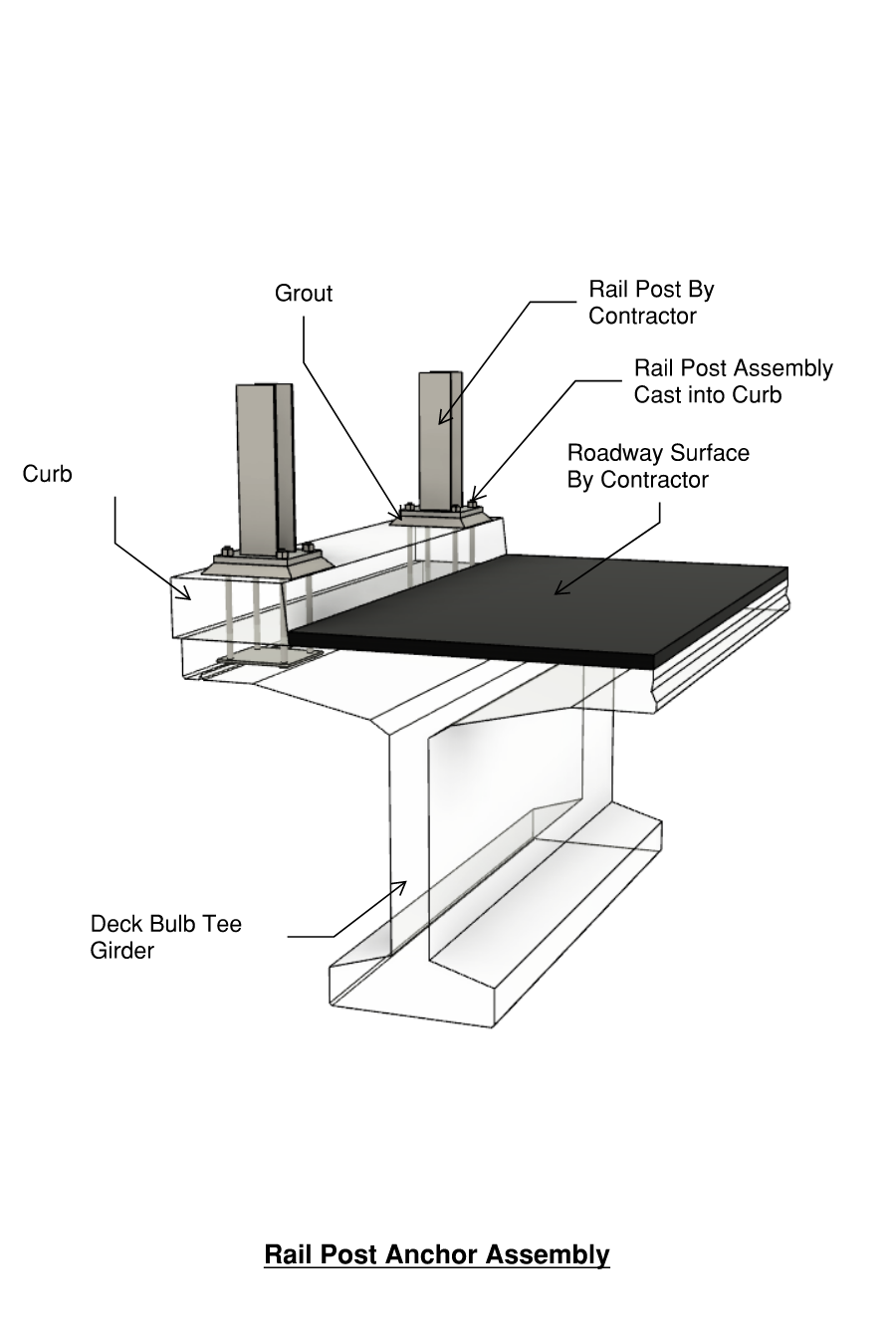

Rail Post Anchor Assembly diagram showing grouted posts cast into a curb with a rideable surface and deck bolt grader base.

Deck Forming

Bridges that require concrete decks to be poured post precast erection will need to have forming onsite for casting.  Precast/Prestressed bridge girders can include blockouts, embedded inserts, embedded pipe for automated screed machines and other miscellanist items to help secure contractor provided formwork to girder.  Often (we coordinated with precaster) formwork can be installed prior to installation for exterior girders to allow faster construction.

Tie Rod

Box beam and voided slab bridge spans use tie rod assemblies to fasten sets of girder together.  Tie rods can either be oriented perpendicular to girder edge or on an angle based on if the bridge is located in a curve.  Recesses located beam side faces allow access to complete tie rod connection assembly once rod has been extended through girder.

Rail Post

Rail post assemblies can be added to deck bulb tee girders.  Steel post assembly is cast into the deck bulb tee top flange with anchor bolts extending up.  Options for pouring the curb as a secondary pour at precast plant are available or curb can be cast onsite by contractor.

Bridge Design

  • Point of sale, design, manufacturing, and installation
  • Controlled manufacturing
  • Over 95% of labor is in a controlled manufacturing facility
  • Reduced site labor increases job safety
  • Accelerated construction
  • Erected upon completion of substructure
  • Year-round casting and installation
  • Higher-strength concrete
  • Fire resistance

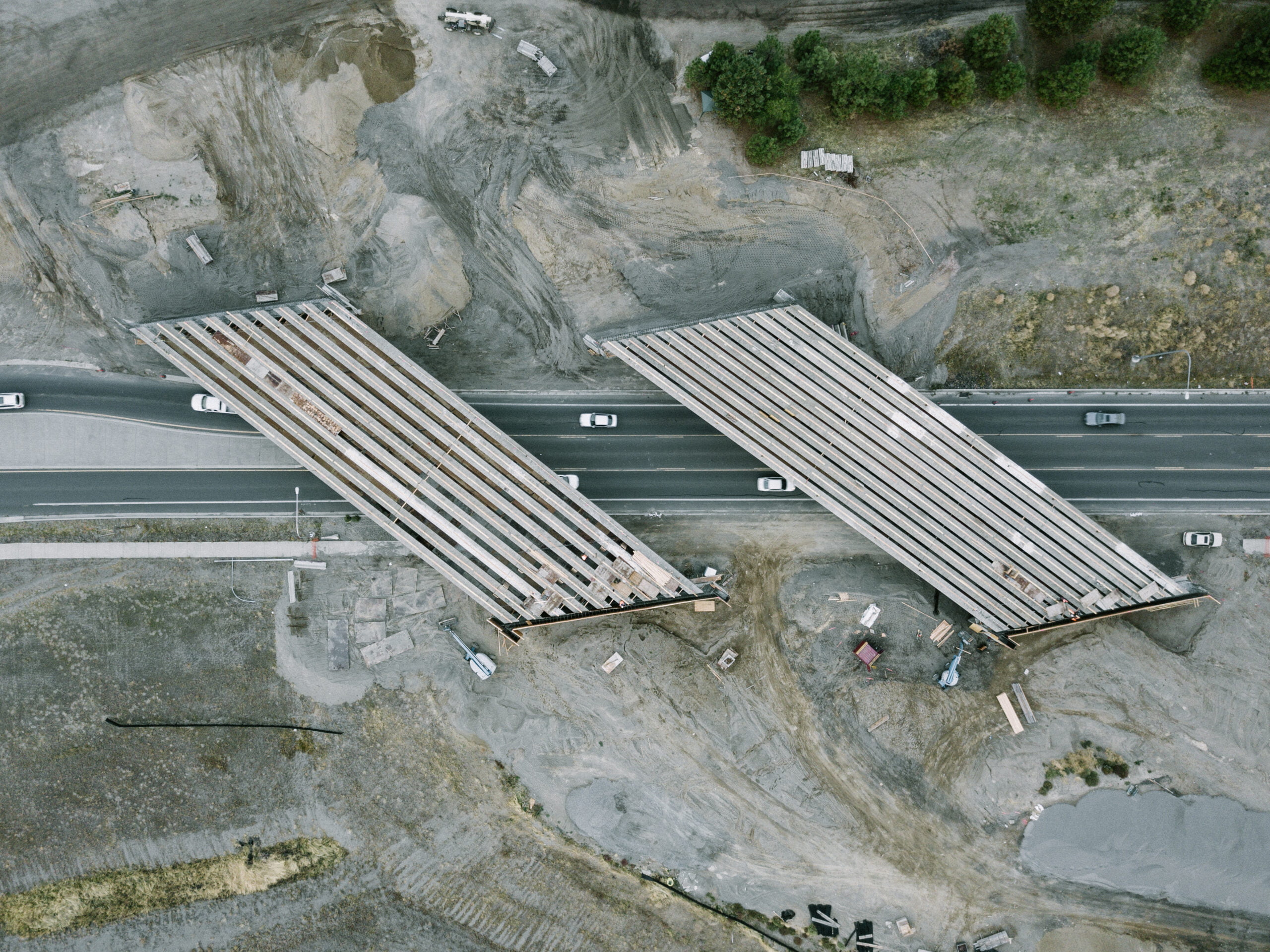

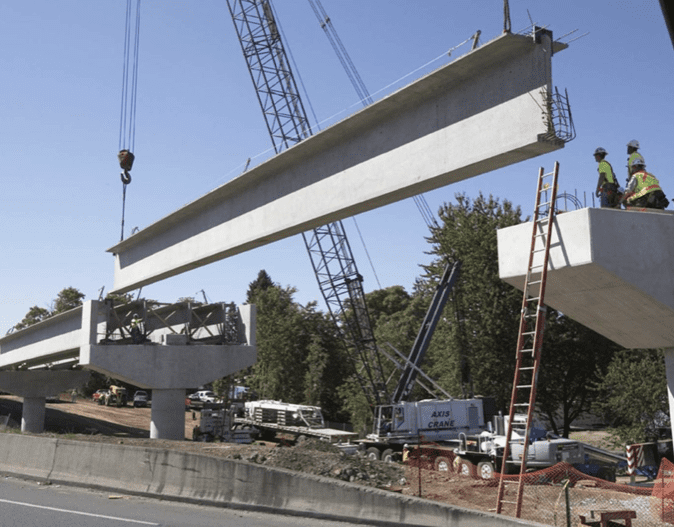

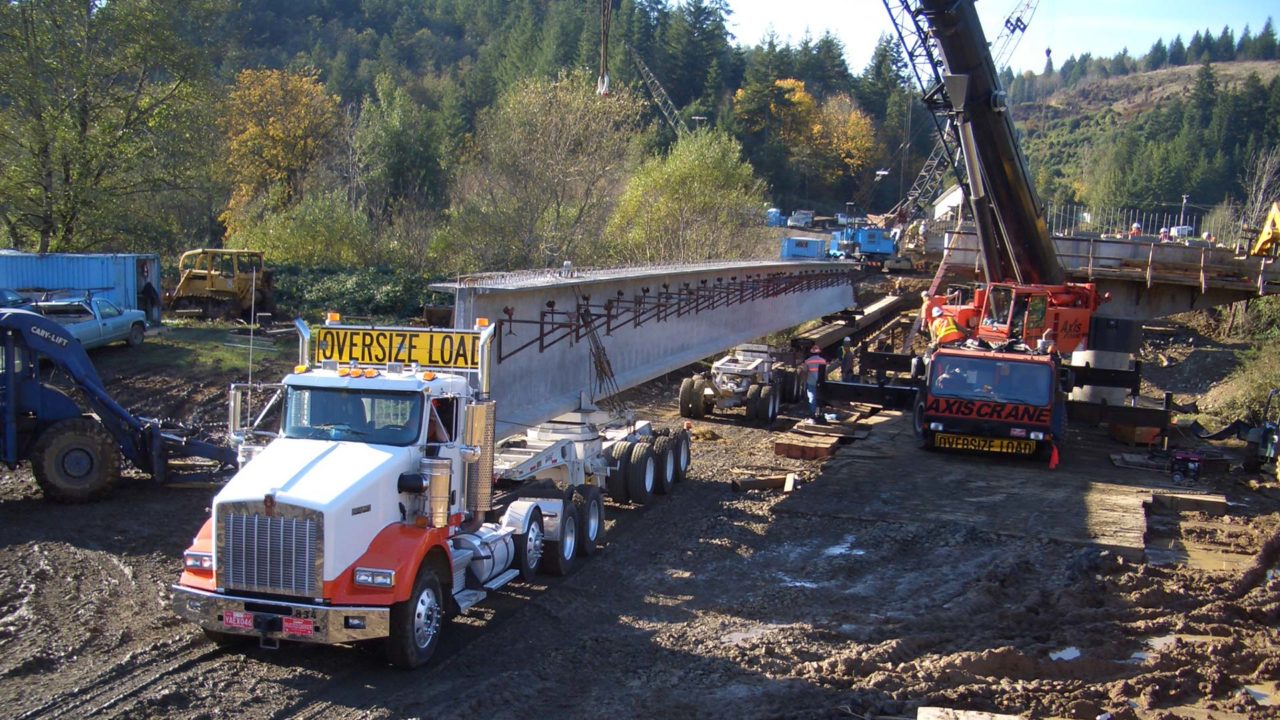

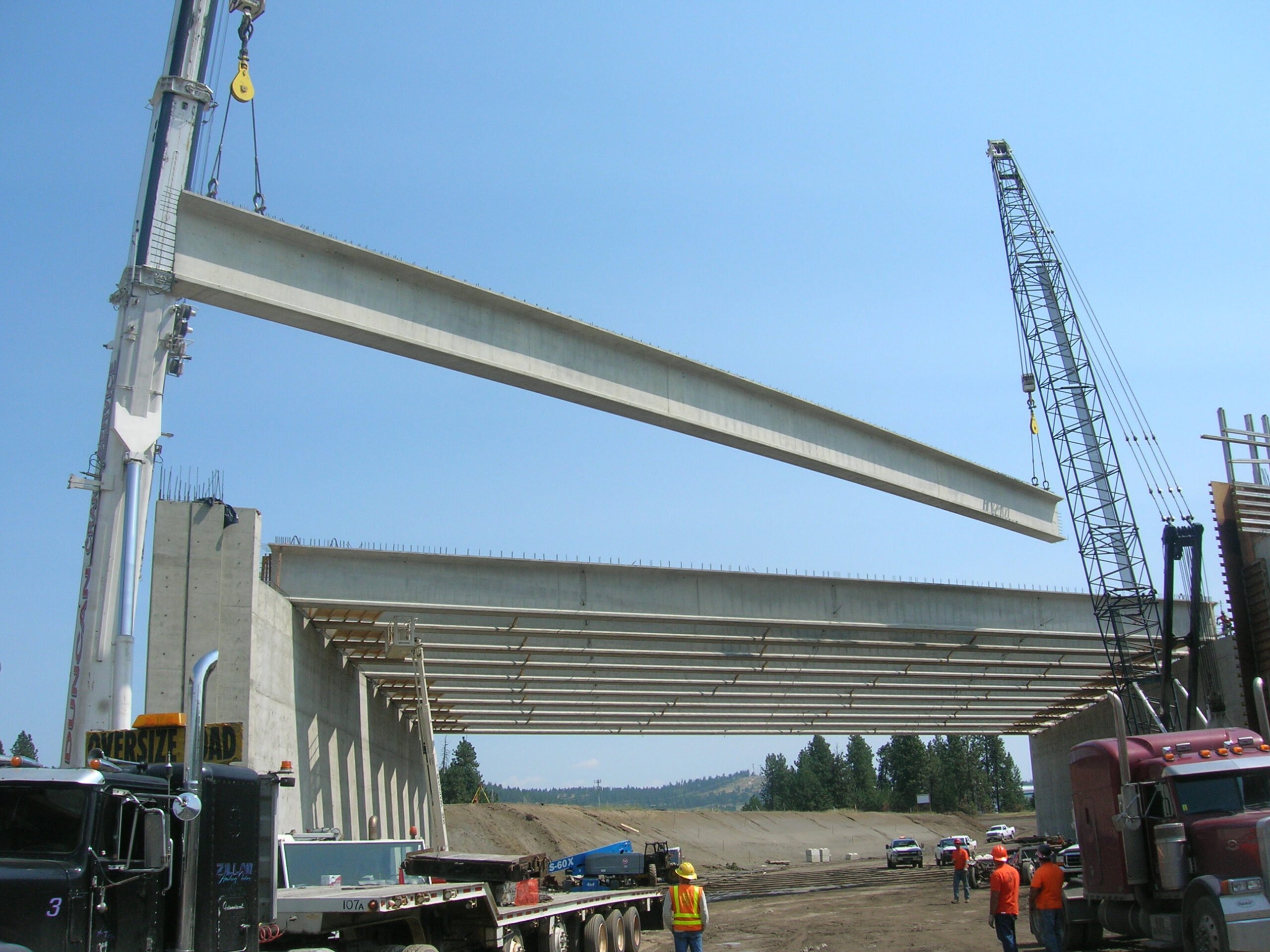

Aerial view of two angled concrete barriers placed across a multi-lane highway during road construction. Crane lifts concrete bulb tee girder onto highway overpass during construction, with workers on the structure. Aerial view of highway interchange under construction, showing concrete overpass structures and curving roads with surrounding landscape. A crane lifts a wide-flange steel girder into position beside an already-installed girder at a bridge construction site, with workers in orange safety gear nearby. Construction site showing a white flatbed truck carrying a long steel beam, with a yellow crane operating nearby and a forested hillside in the background. Aerial view of a bridge under construction with a large crane lifting components, workers on site, and a residential neighborhood in the background. Crane lifting a large concrete bridge girder with steel bearing pads, set against a blue sky with trees.
