Span Length

30′ 34′ 38′ 42′ 46′ 50′ 54′ Span Length TD27 x 3'-11 3/4" 30′ - 52′ TD27 x 4'-8" 30′ - 52′ TD27 x 4'-9 1/4" 30′ - 52′ TD27 x 5'-4" 30′ - 52′ TD27 x 5'-7 1/4" 30′ - 52′ TD27 x 5'-11 3/4" 30′ - 52′

Section Properties (gross)

HL-93 vehicle load, 52 ft. max. span (max. span is governed by handling.  U-80 vehicle load, 46 ft. max span. Alternate loading or longer spans may be acceptable with engineer review.

Product Name Depth (in) Area (in2) Yb (in4) Ixx (in4) Iyy (in4) PLF @ 165
TD27 x 3'-11 3/4" 27" 680 16.38 42149 147283 781
TD27 x 4'-8" 27" 730 16.91 44969 178431 838
TD27 x 4'-9 1/4" 27" 737 16.98 45364 184075 846
TD27 x 5'-4" 27" 787 17.35 47374 219192 904
TD27 x 5'-7 1/4" 27" 797 17.51 48272 239077 915
TD27 x 5'-11 3/4" 27" 824 17.73 49449 270057 946

Product Information

Typical Tri-Deck height is set at 2′-3″ with a standard 6″ thick top flange adjustable in width from 48″ to 84″. The top flange can be thickened to accommodate design requirements, however, reducing the stem height is difficult and not cost effective.

Standard Design Options

  • Integral Precast Curbs
  • Utility inserts
  • Air Entrained Decks
  • Bolts or Sleeves for Guard Rail Post Connection
  • Precast End Diaphragms

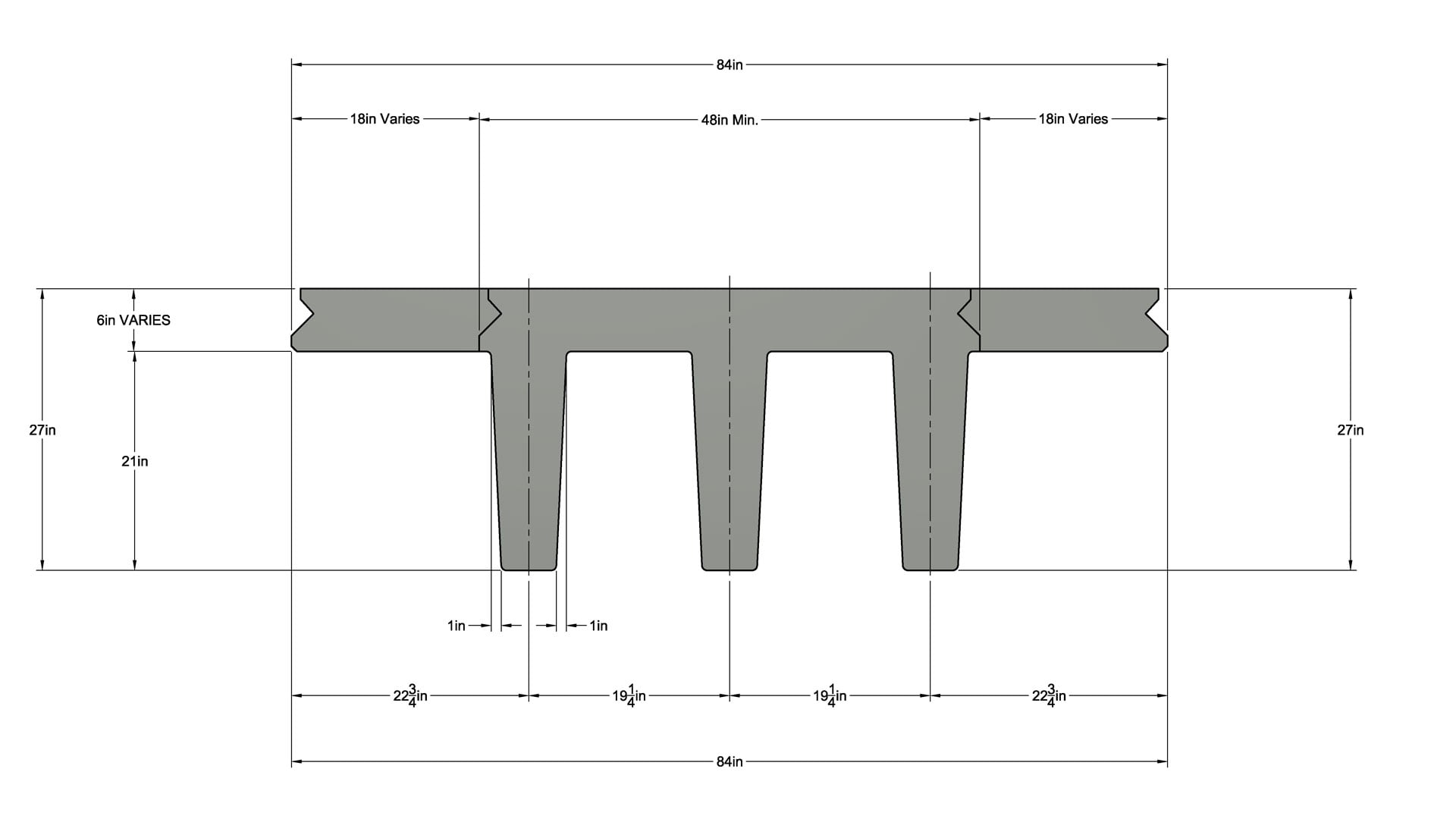

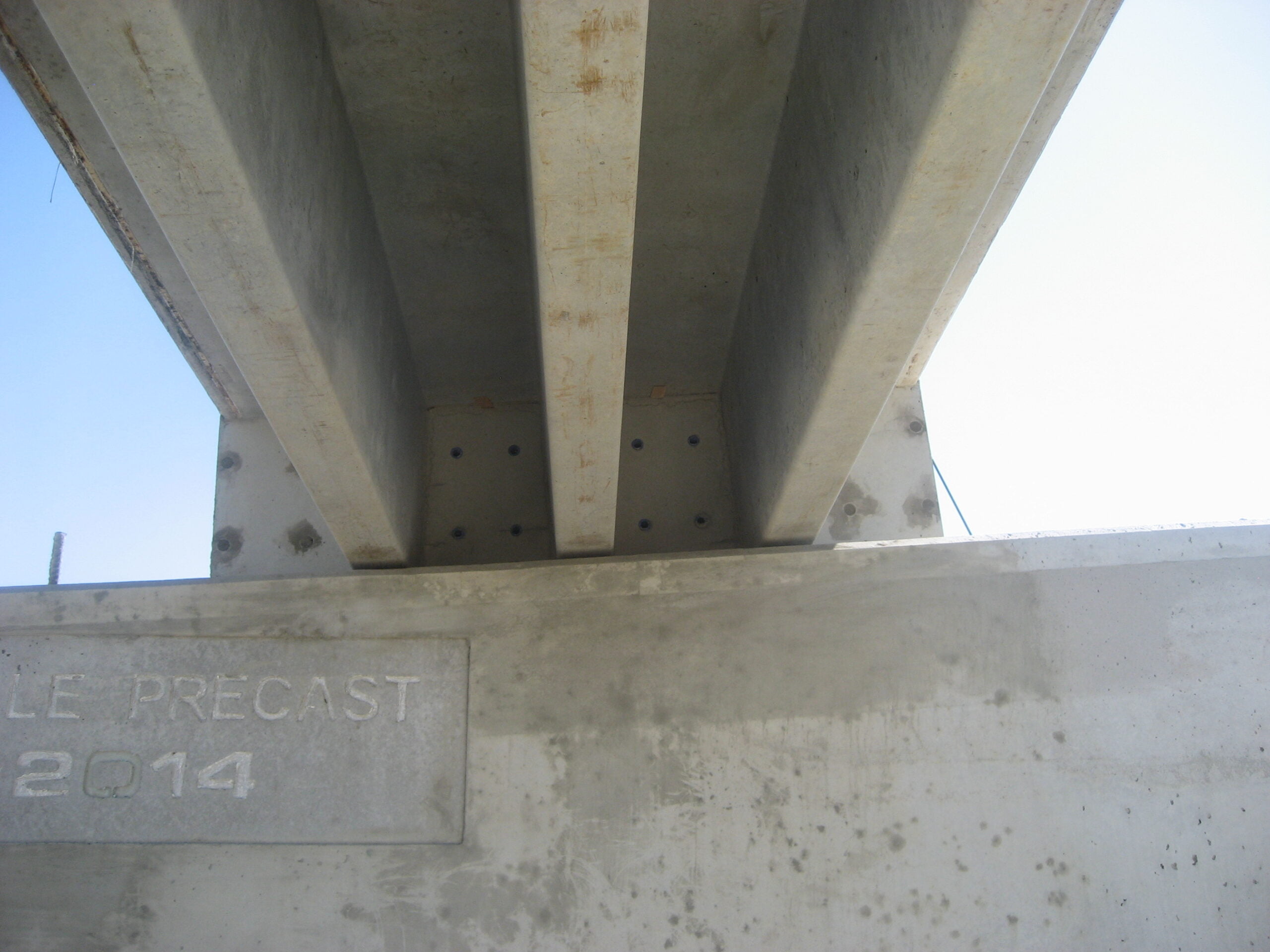

Technical drawing of a T-shaped metal component with three supporting legs and detailed dimensional specifications. Workers guide a concrete bridge deck into place during construction of the Tri-Deck over a rocky stream. Concrete tri-deck structure under construction with a crane lifting a large beam between thick support pillars. Underside of a precast concrete bridge deck showing support beams and embossed text reading
