Span Length

80′ 98′ 116′ 134′ 152′ 170′ 188′ Span Length WF36 80′ - 105′ WF42 90′ - 120′ WF50 105′ - 140′ WF58 120′ - 150′ WF74 140′ - 180′ WF83 160′ - 185′

Section Properties (gross)

Typical Girder Spacing – 5ft through 7ft

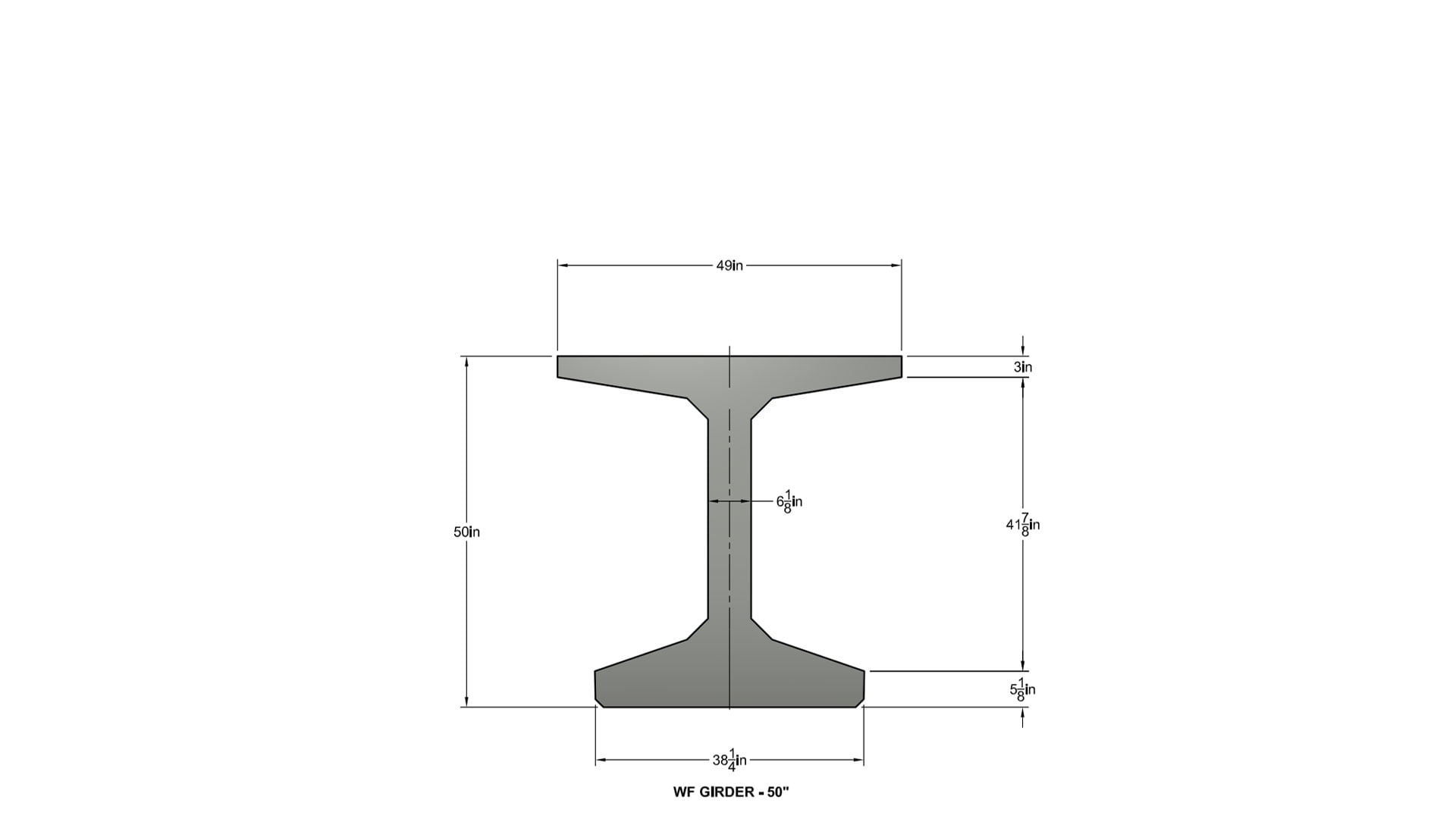

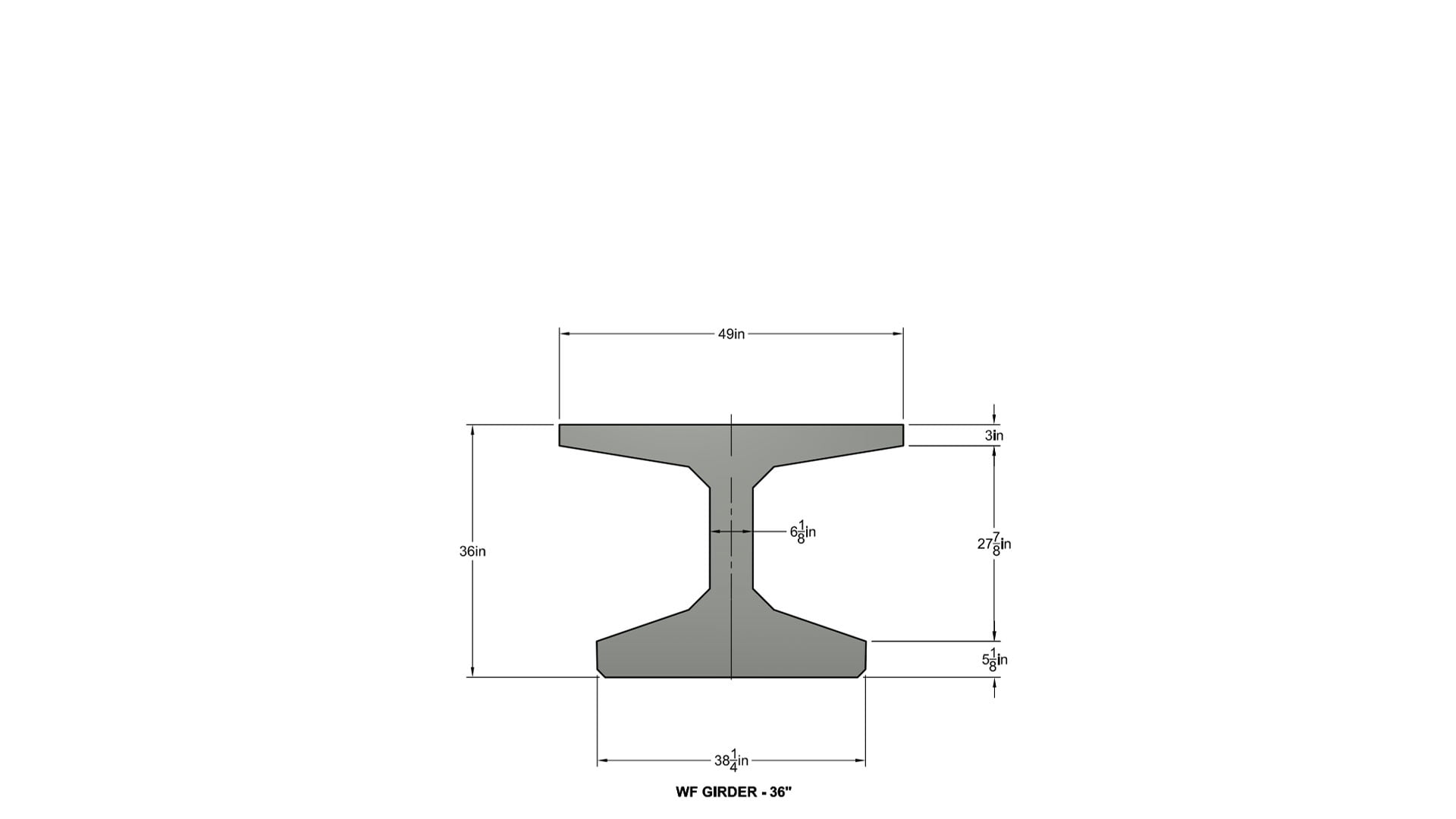

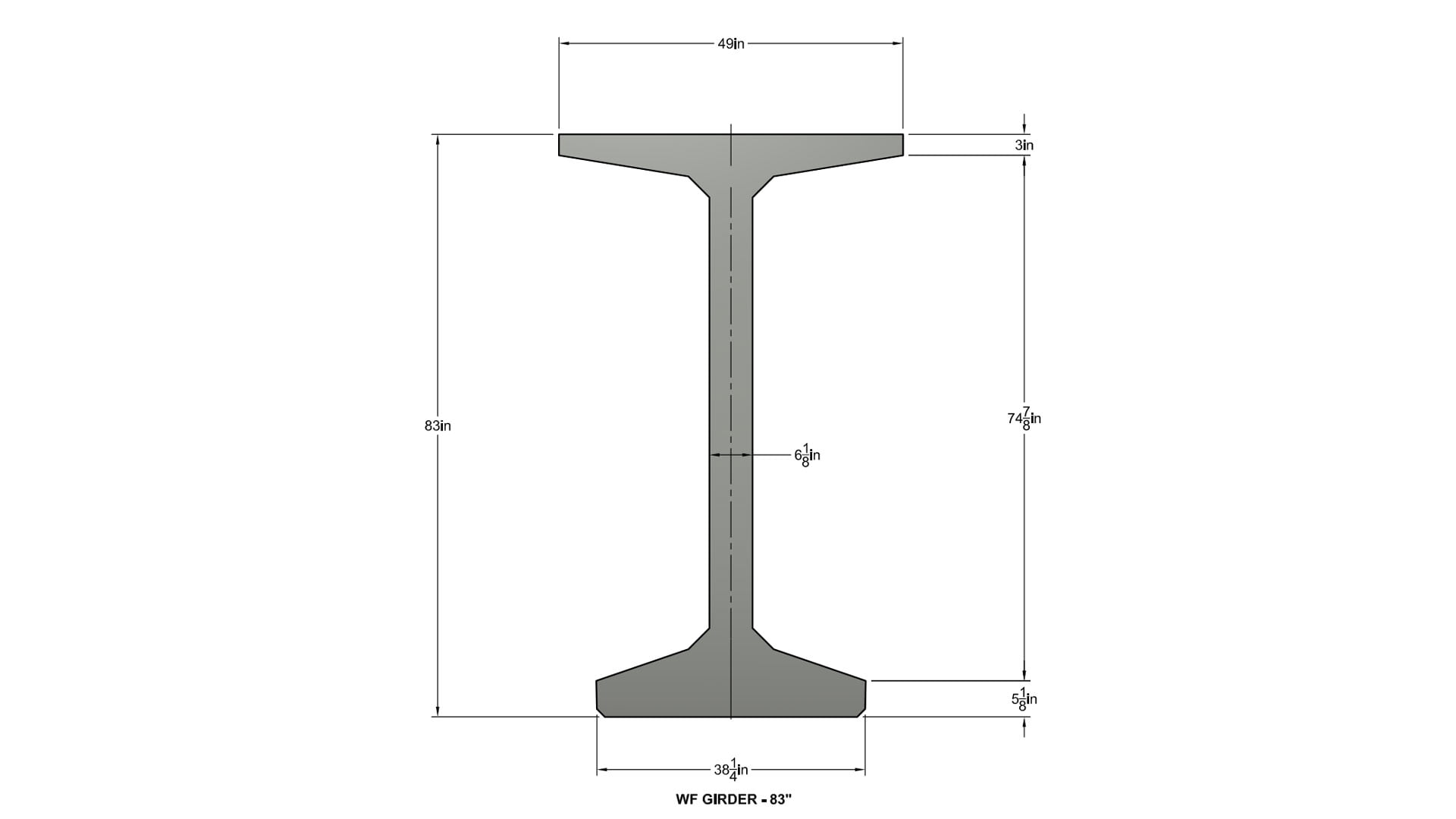

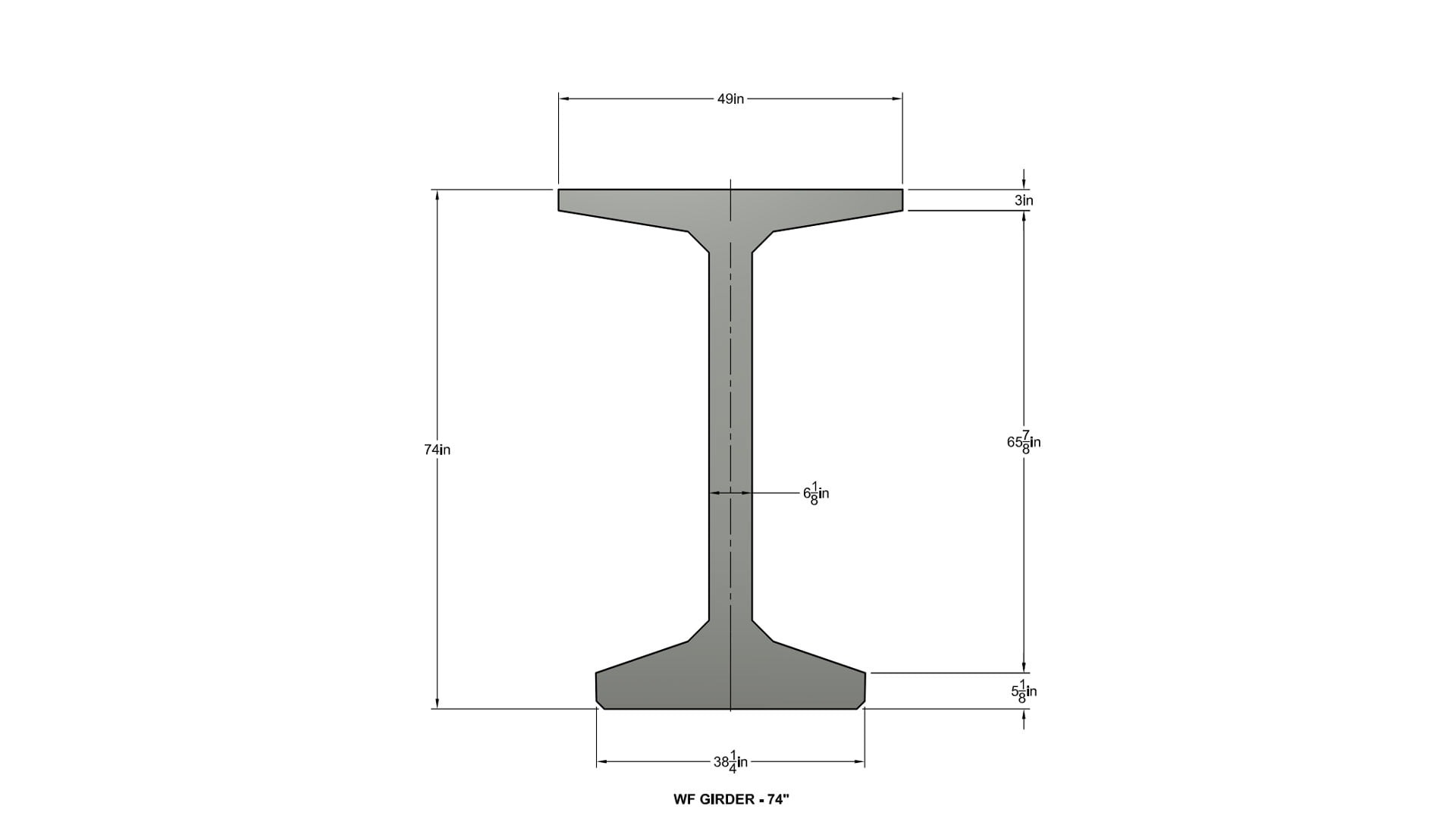

Product Name Depth (in) Area (in2) Yb (in4) Ixx (in4) Iyy (in4) PLF @ 165

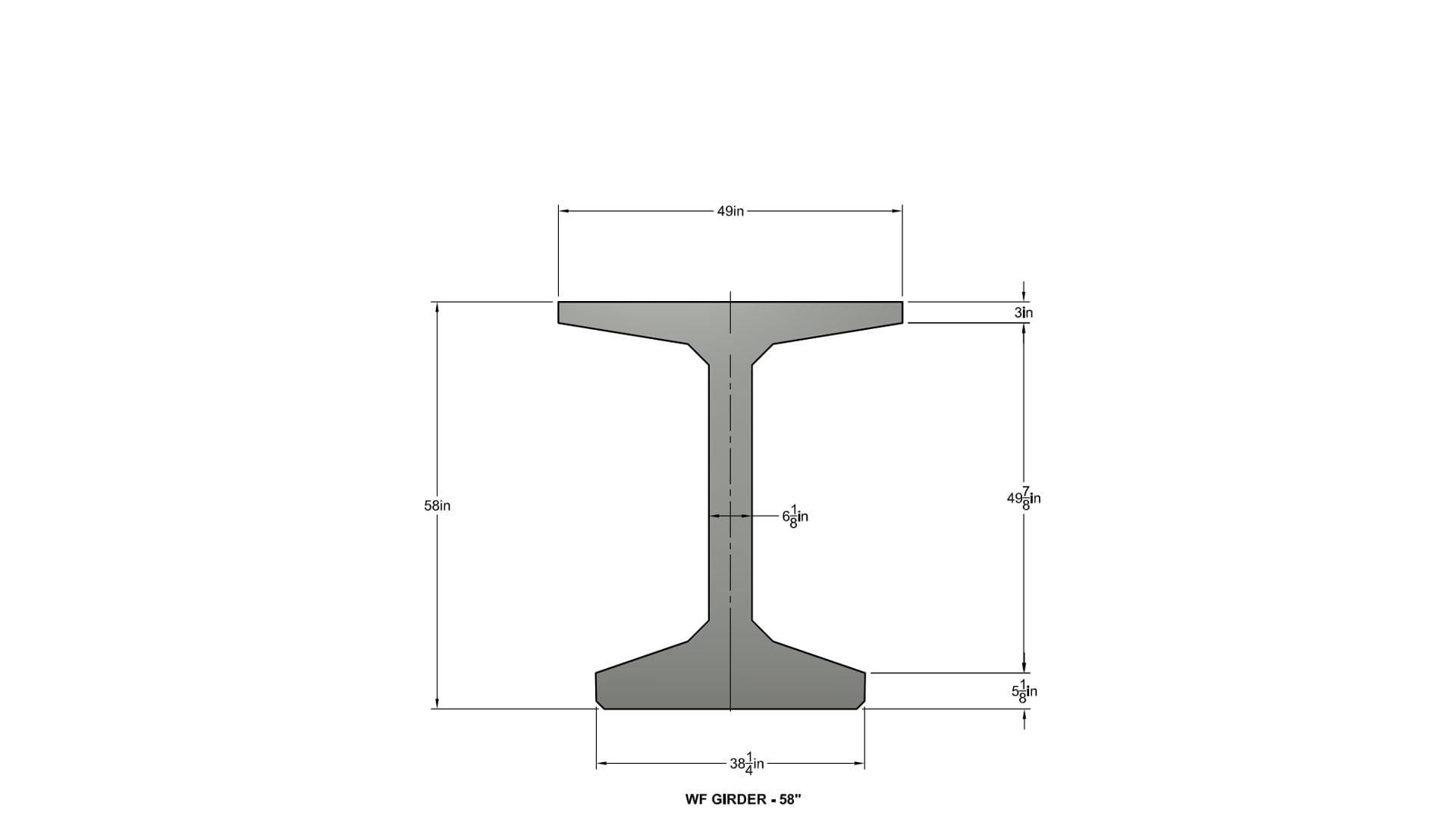

WF36 36" 690 17.5 124573 71026 792

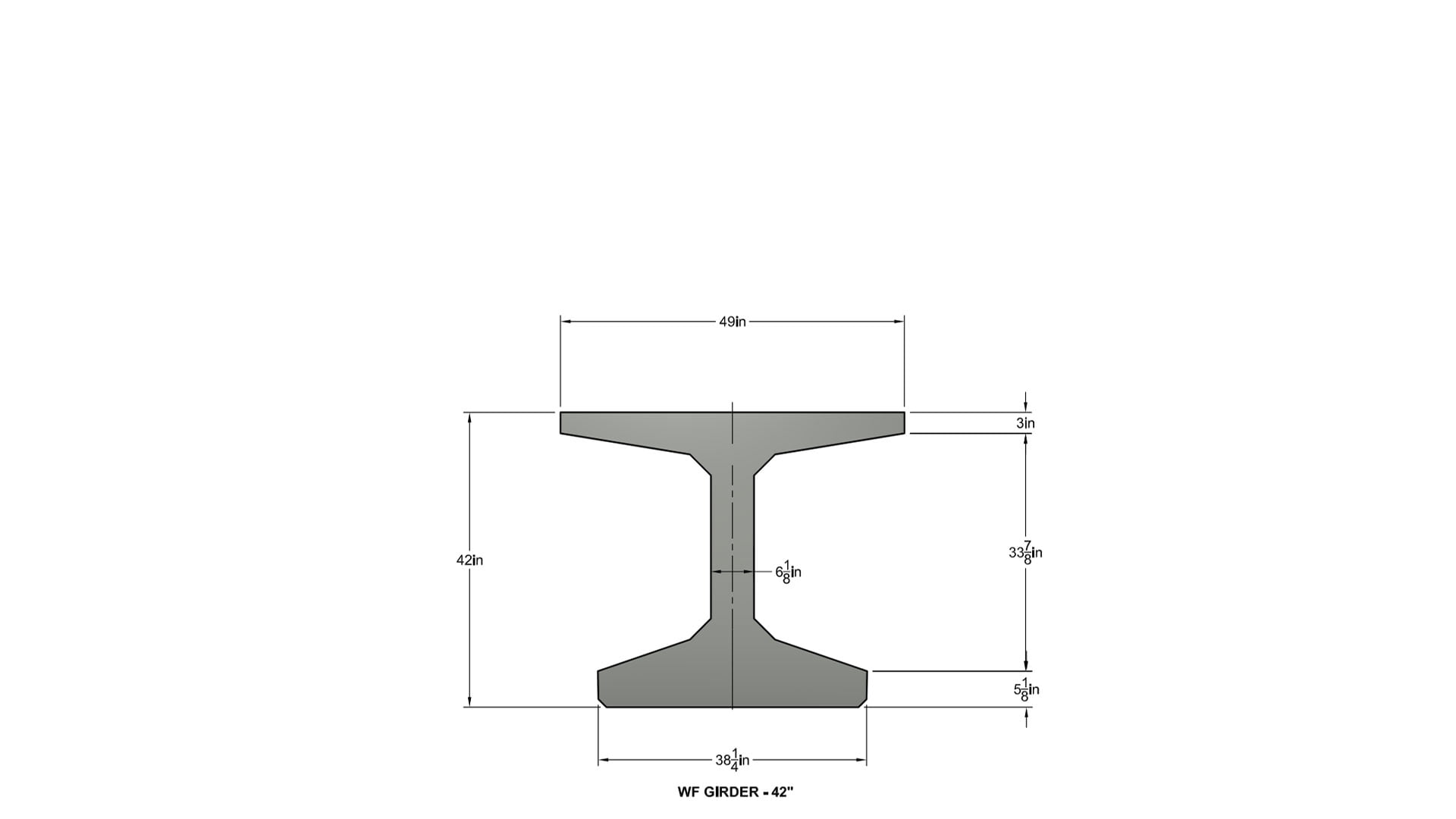

WF42 42" 732 20.4 183369 71141 841
WF50 50" 781 24.2 282168 71294 897
WF58 58" 830 28.0 405733 71447 953
WF74 74" 928 35.7 733473 71753 1066
WF83 83" 981 39.9 968865 71926 1127

Product Information

Knife River can cast WF girders in 36″, 42″, 50″, 58″, 74″ and 83″ depths, designed for use with a composite concrete field-cast deck.


Standard Design Options

  • Skewed Top Flange applications
  • Cast in inserts or hole for diagraph reinforcing
  • Cast in inserts for mounting utility brackets

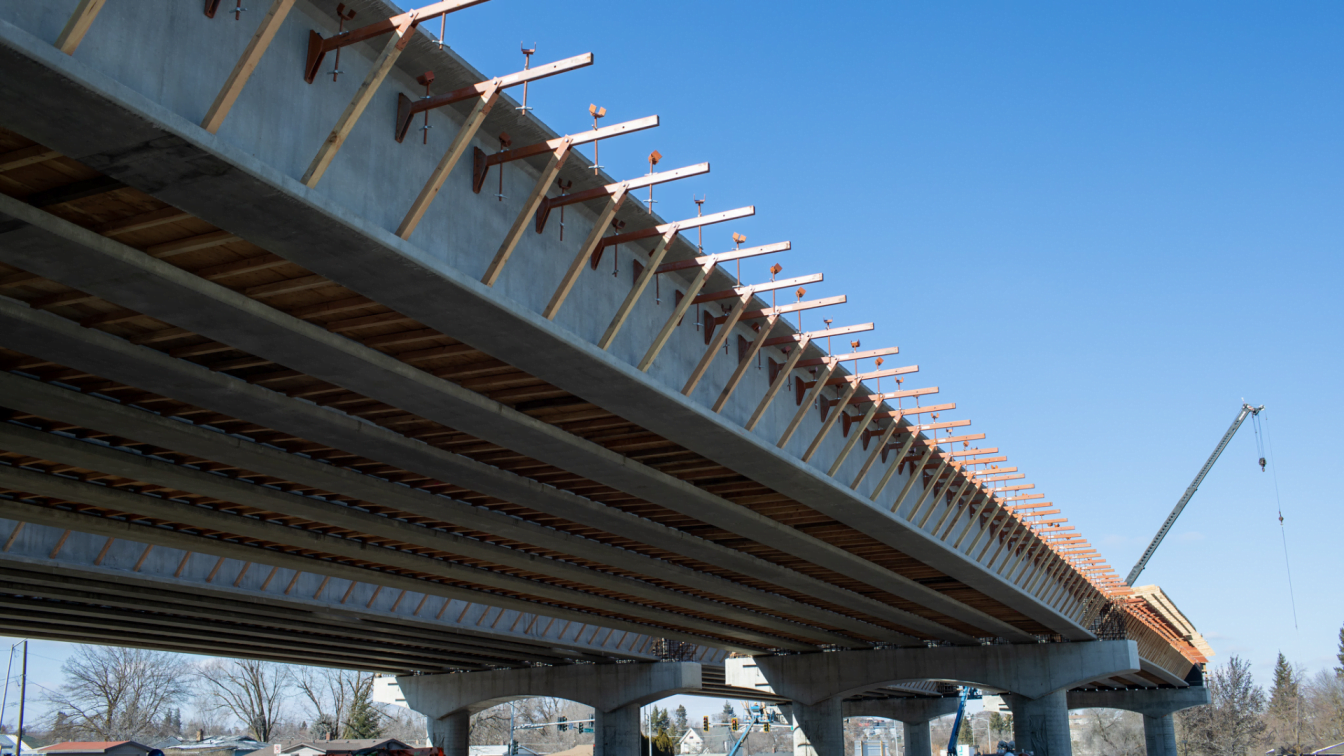

  • Top flange/web holes for mounting deck forming brackets

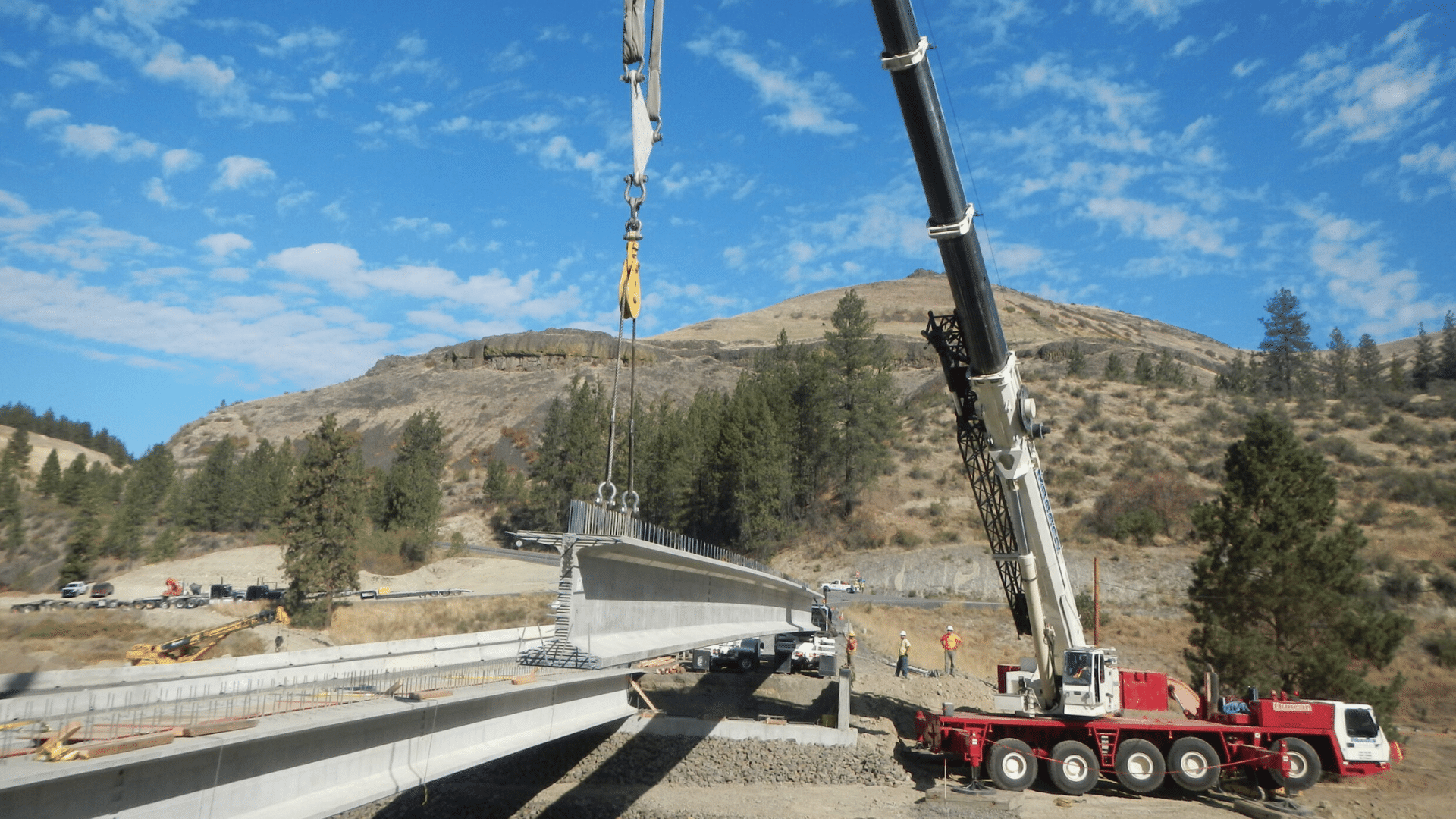

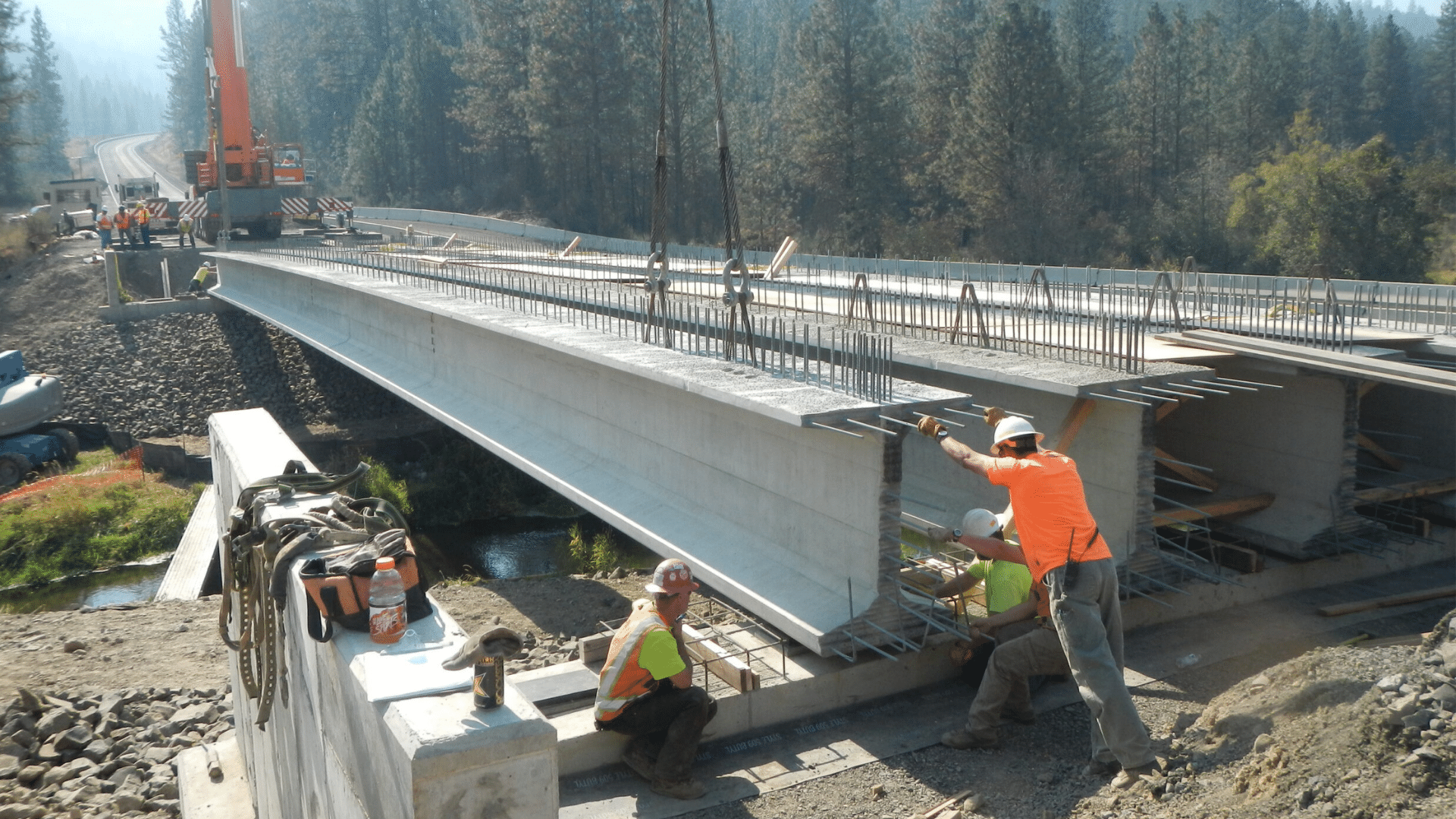

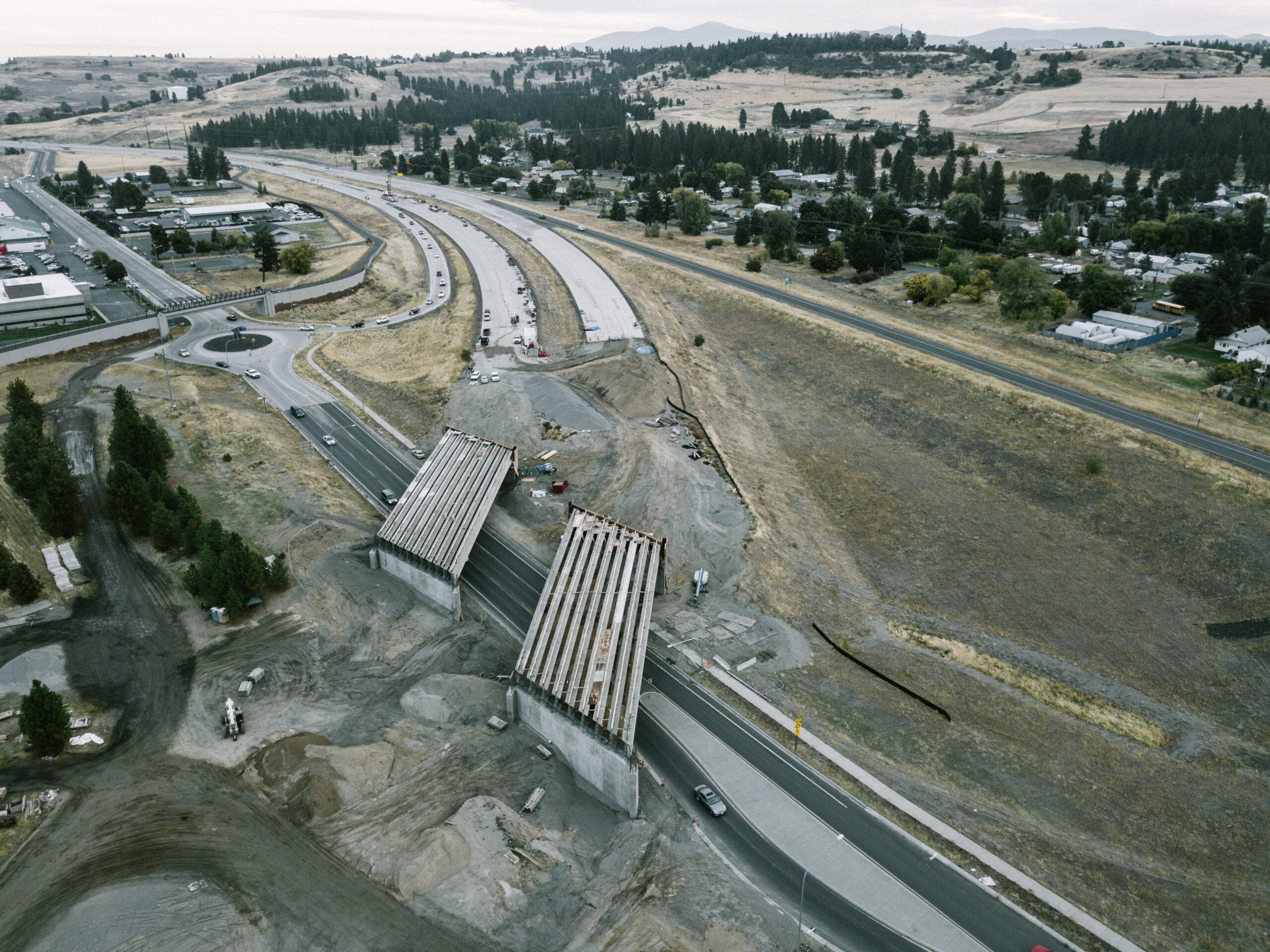

image image image image image image
image image image image
