Bulb I

The Bulb I (BI51, BI63 and BI75) is a less commonly used ODOT standard girder for medium to long length span bridges. It utilizes the BT section with the deck blocked in to achieve difficult site requirements such as heavy super elevations and vertical curves. Allows girders to be placed closer together for major skews and difficult on site deck pours. Typical users of the design include:

Washington Department of Transportation (WSDOT), Oregon Department of Transportation (ODOT), Idaho Transportation Department (ITD), Montana Department of Transportation (MTD), Alaska Department of Transportation (ADOT), United States Forest Service (USFS)

Span Length

Section Properties (gross)

Product Name	Depth (in)	Area (in2)	Yb (in4)	Ixx (in4)	Iyy (in4)	PLF @ 165

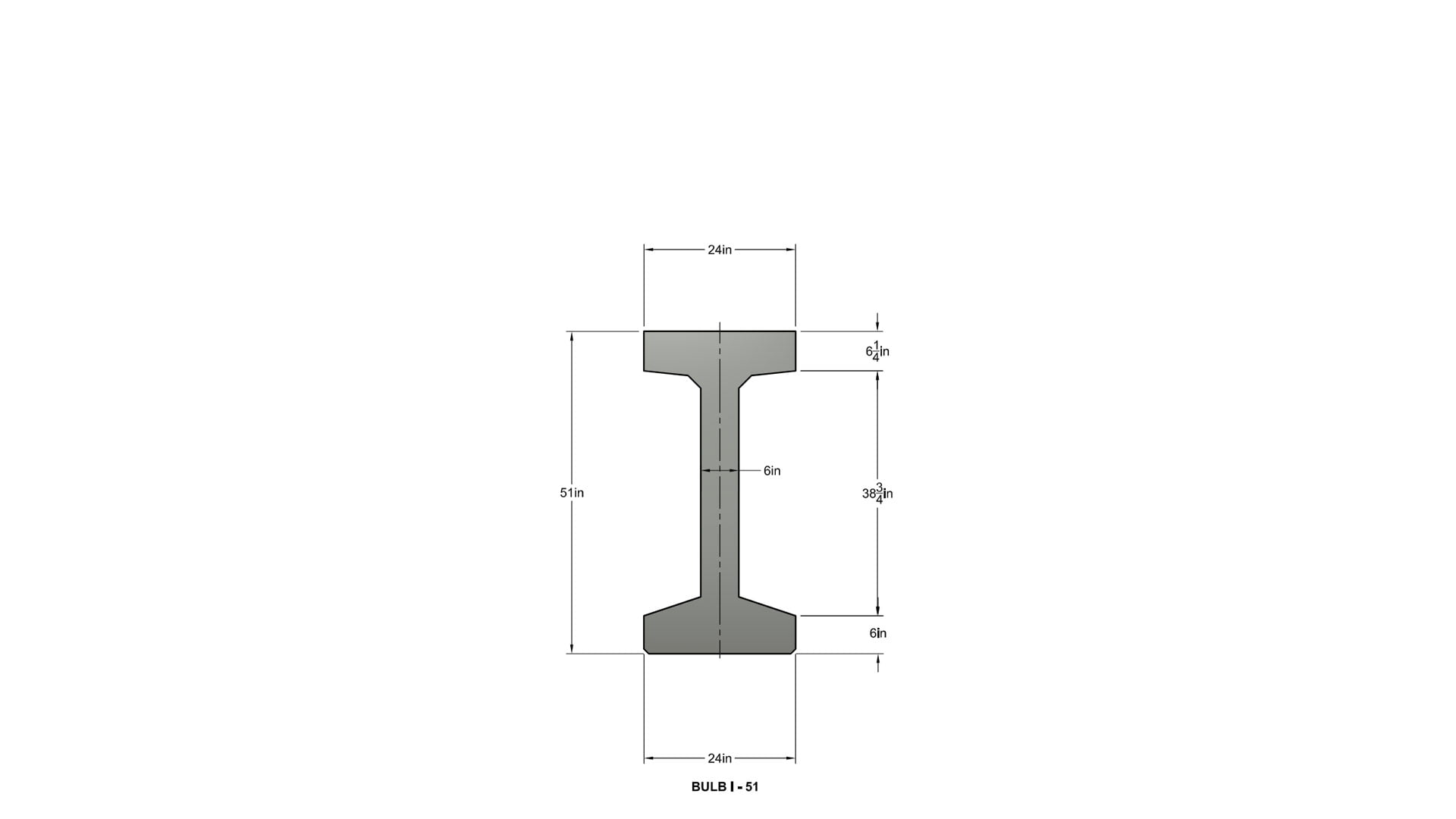

BI51	51"	566	25.2	191444	16303	650

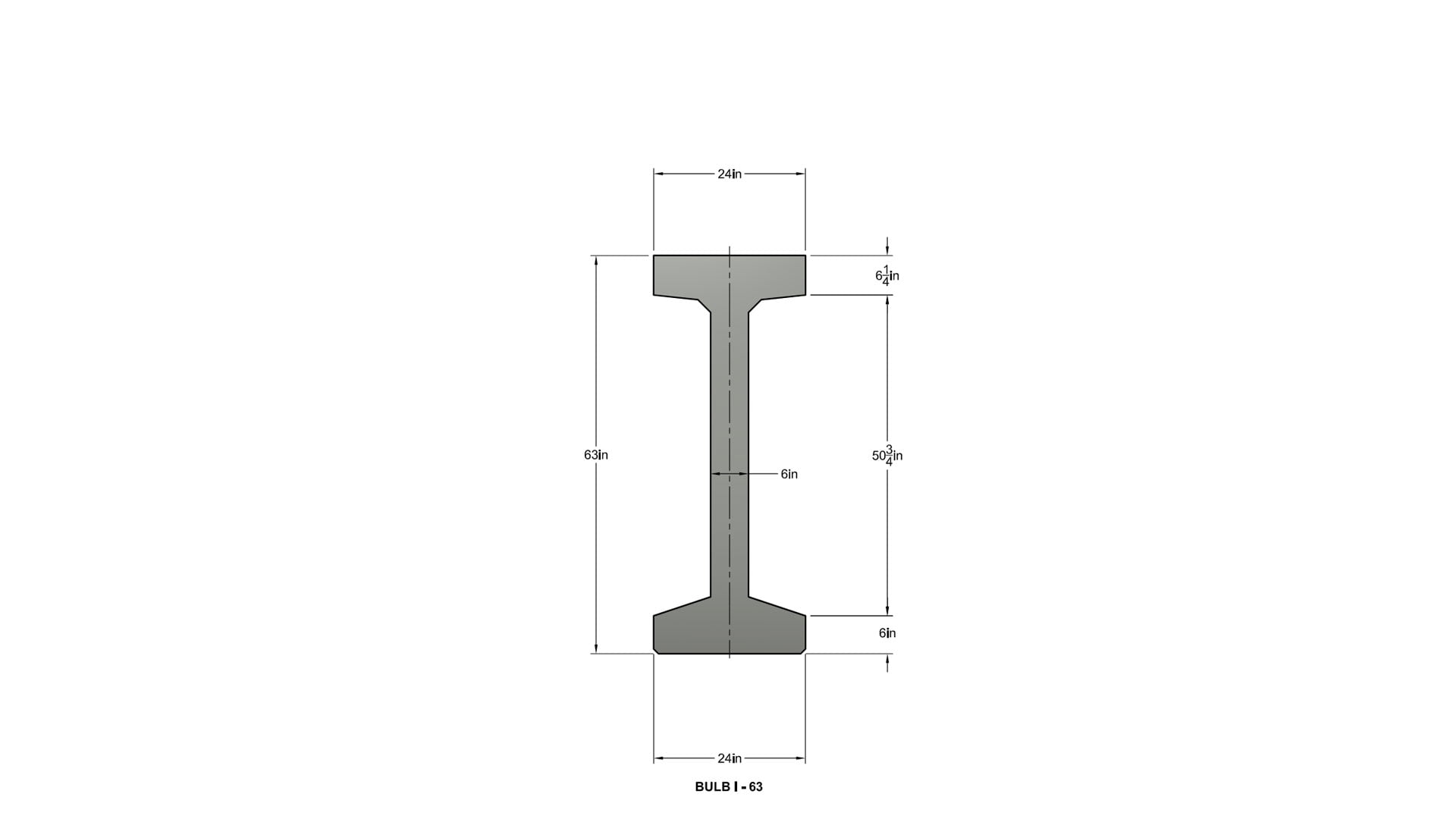

BI63	63"	638	31.1	327551	16519	733

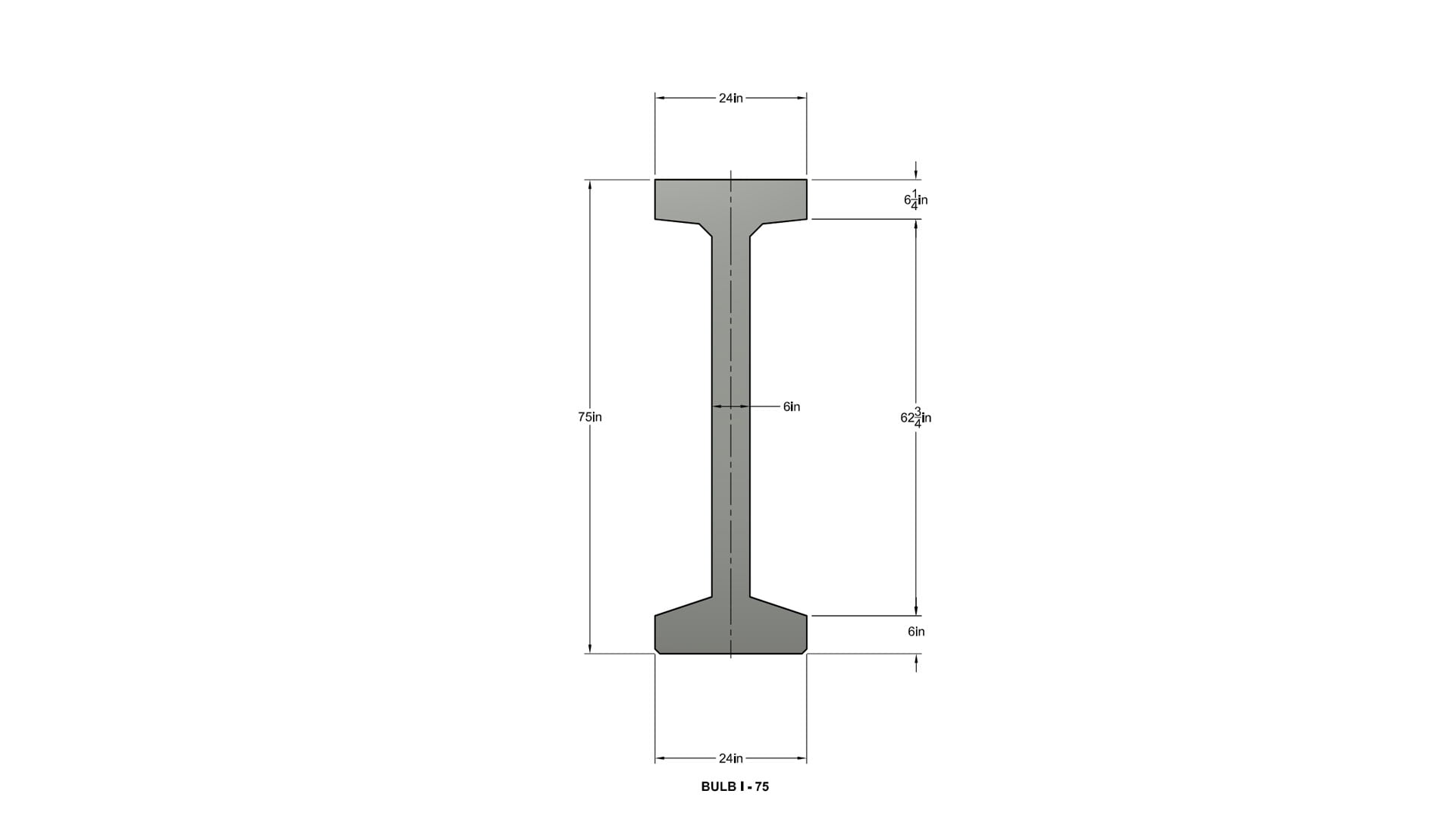

BI75	75"	710	37.1	509572	16735	815

Product Information

The Bulb I (BI) girder is a standard variation of the Bulb-T girder. Use the BI shape only when it has benefits over a Bulb-T girder. Since the BI girder have a narrower top flange, it requires less concrete build-up than a Bulb-T. Therefore bridges with high super elevations (generally, greater than 7%) may want to consider the BI girder.

Standard Design Options

Forming and Diaphragm Inserts.
Adjust web thickness to accommodate post-tensioning (for spliced girders). For such cases increase the web thickness from 6″ to 7.5″
Cast in inserts or hole for diagraph reinforcing
Cast in inserts for mounting utility brackets
Top flange/web holes for mounting deck forming brackets

3D Viewer

3D Viewer Tools

3D Viewer Functions:
Move, Span, Zoom Assemblies
Isolate Single Components in View
Explode Assembly Single Components
Use Markup to Sketch Details
General Measurements for Concept
Print Views
