Product Information

Precast Stadia products are typically specific to the project parameters.  Typical product include:

  • Risers – 4″ to 8″ x Riser Profile – single and double tread options
  • Raker Beams – Steel or Precast depths specific to project requirements
  • Vomitory/Header Walls – 6″ to 8″ thick
  • Shear Walls – 8″ to 12″





Standard Design Options

  • Precast riser sections can be designed with single, double or triple horizontal tread sections.
  • Precast risers that are located at stair ends can have a up turned front face (Tub Riser).  These up turned faces are typically used for mounting of railing, protective glasses, etc.
  • Riser sections are plant cast in a orientation similar to how they are positioned on the final structure.  Verification of riser rise/run with precaster critical during project design.

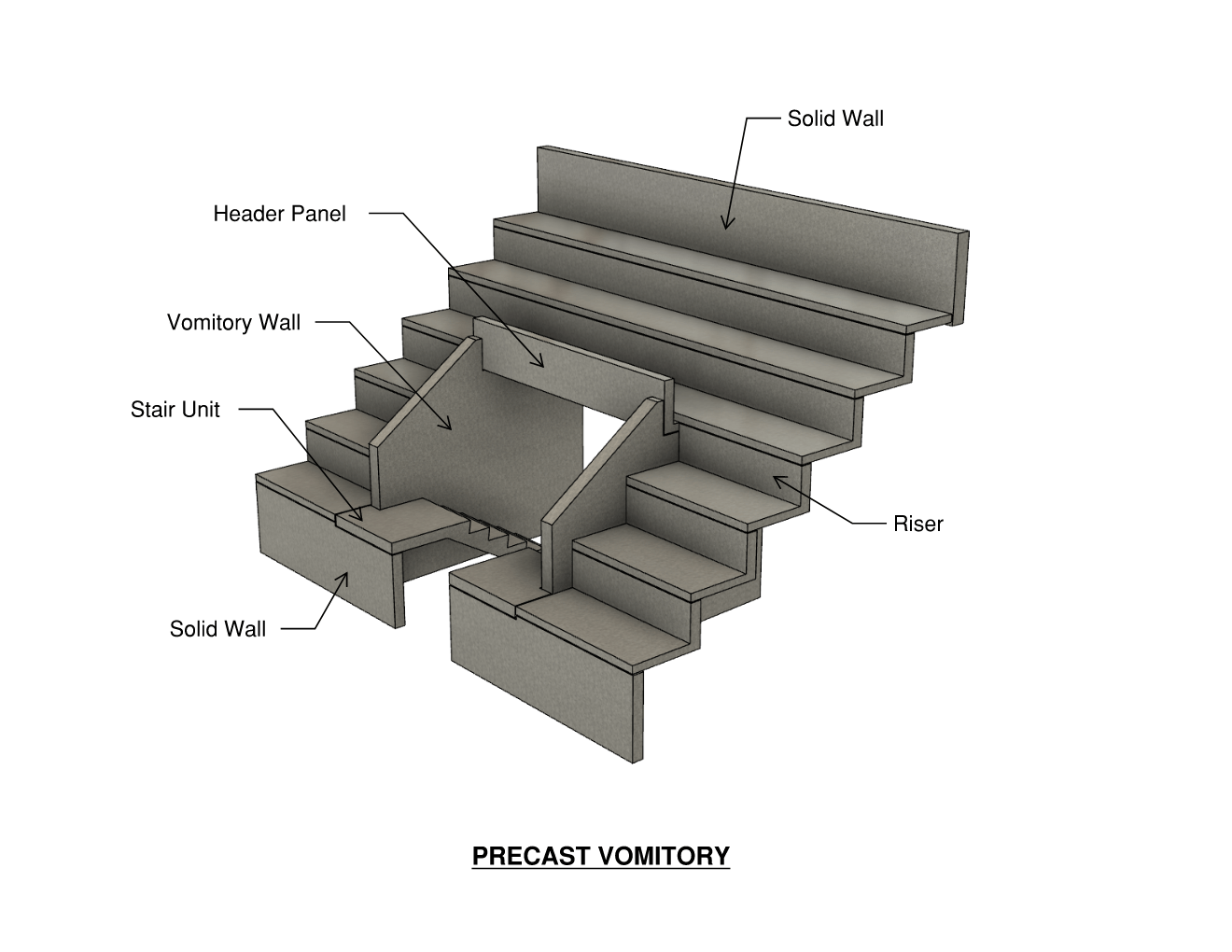

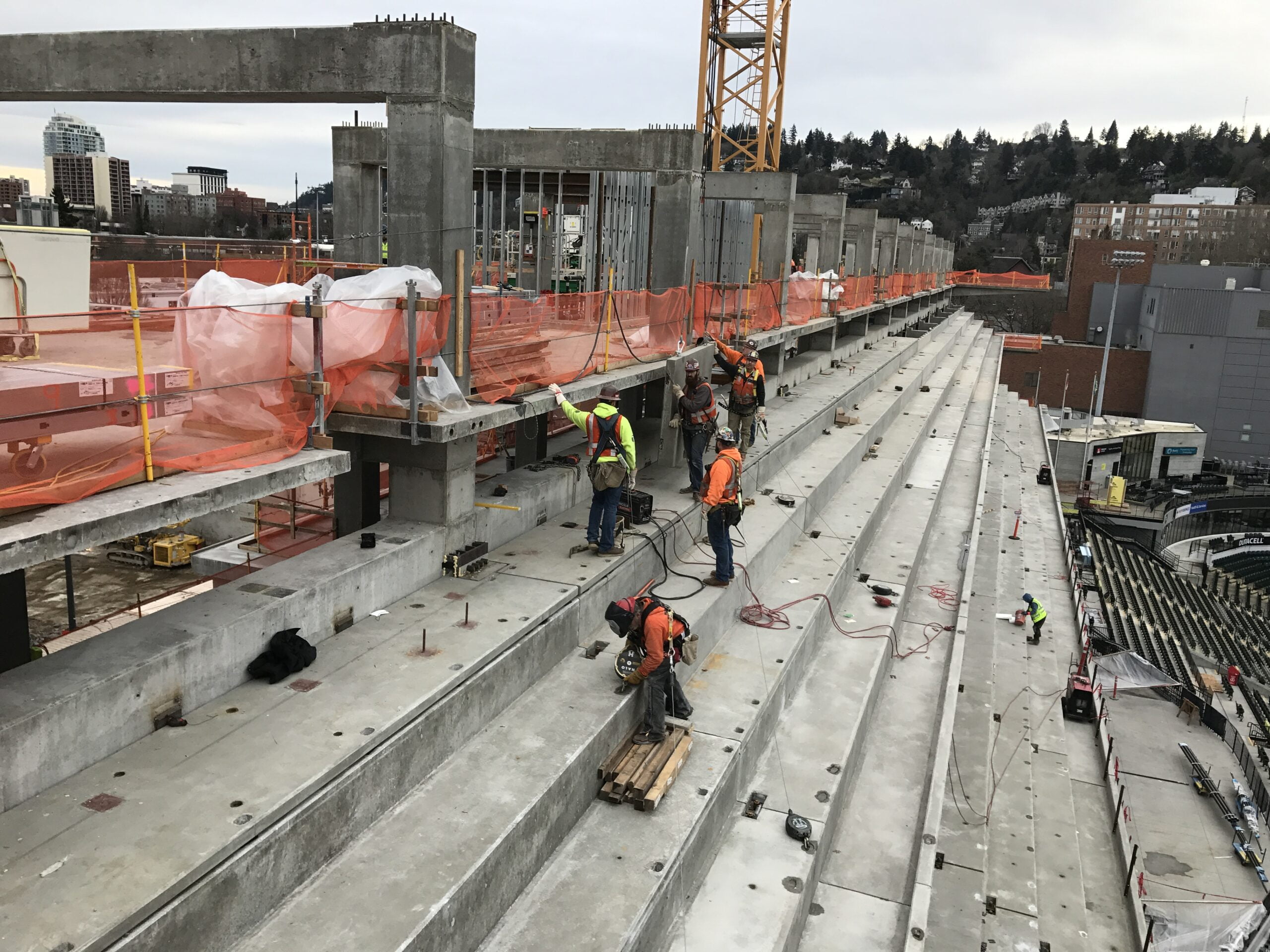

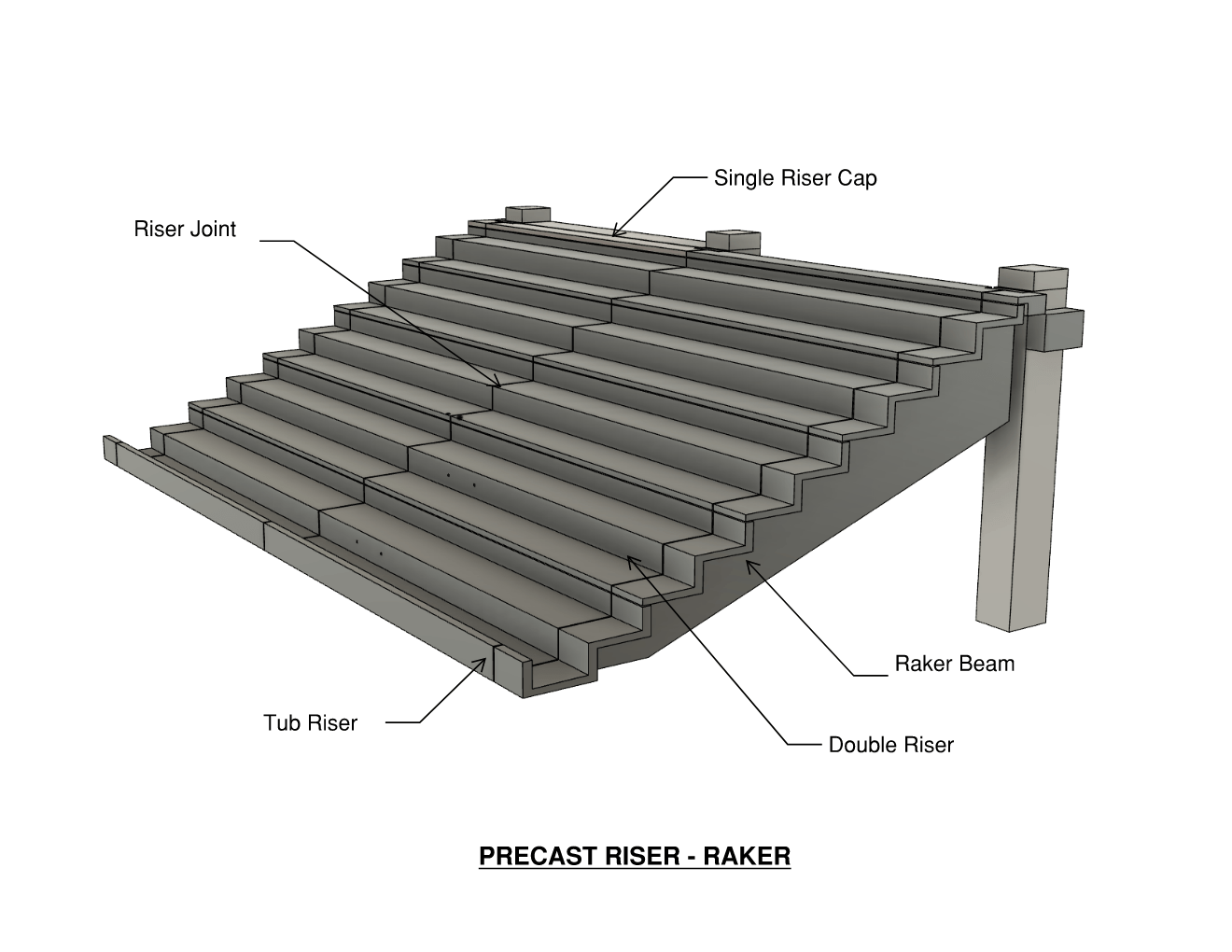

Diagram labeling components of a precast vomitory, including solid walls, header panel, vomitory wall, stair unit, and riser. Labeled technical diagram of a precast riger-baker architectural element showing riser joints, riser caps, and riser beams. Construction workers in safety gear install components on an elevated concrete structure, with orange fencing, a crane, and equipment visible on the active building site. Aerial view of a stadium under construction, featuring cranes, partially built structures, and a curved white roof surrounding a green field. Construction site with a tall crane and scaffolding alongside a multi-story building under construction under a partly cloudy sky. Crane lifts steel beam over partially constructed stadium with seating and construction equipment under overcast sky. Construction of a stadium with concrete bleachers and a crane lifting a steel structure under an overcast sky. Steel beams being lowered by a crane at an industrial construction site, with workers in high-visibility vests and scaffolding surrounding the area.

3D Viewer

3D Viewer Tools



  • 3D Viewer Functions:
  • Move, Span, Zoom Assemblies
  • Isolate Single Components in View
  • Explode Assembly Single Components
  • Use Markup to Sketch Details
  • General Measurements for Concept
  • Print Views
