Product Information

Precast spandrels can be designed to have gravity loads bearing on the columns or floor system.  Typical non-load bearing spandrels range from 6” to 8” thick while load bearing range from 8” to 11” thick and spans that range from 20’ to 60’.  Spandrel heights are controlled by the specific project requirements (Commonly 6’-0” to 8’-0” tall).

Standard Design Options

  • 36′ Length Typical for Parking Garage Double Tee Loading Bearing spandrels.
  • 60′-65′ Length Typical for Parking Garage Non-Load Bearing Spandrel.
  • Structural or Cladding options available
  • Vehicle impact load ratings
  • Total precast or hyrbid CIP options, Graphic Concrete allows for integrated “artwork” when required by local design criteria.

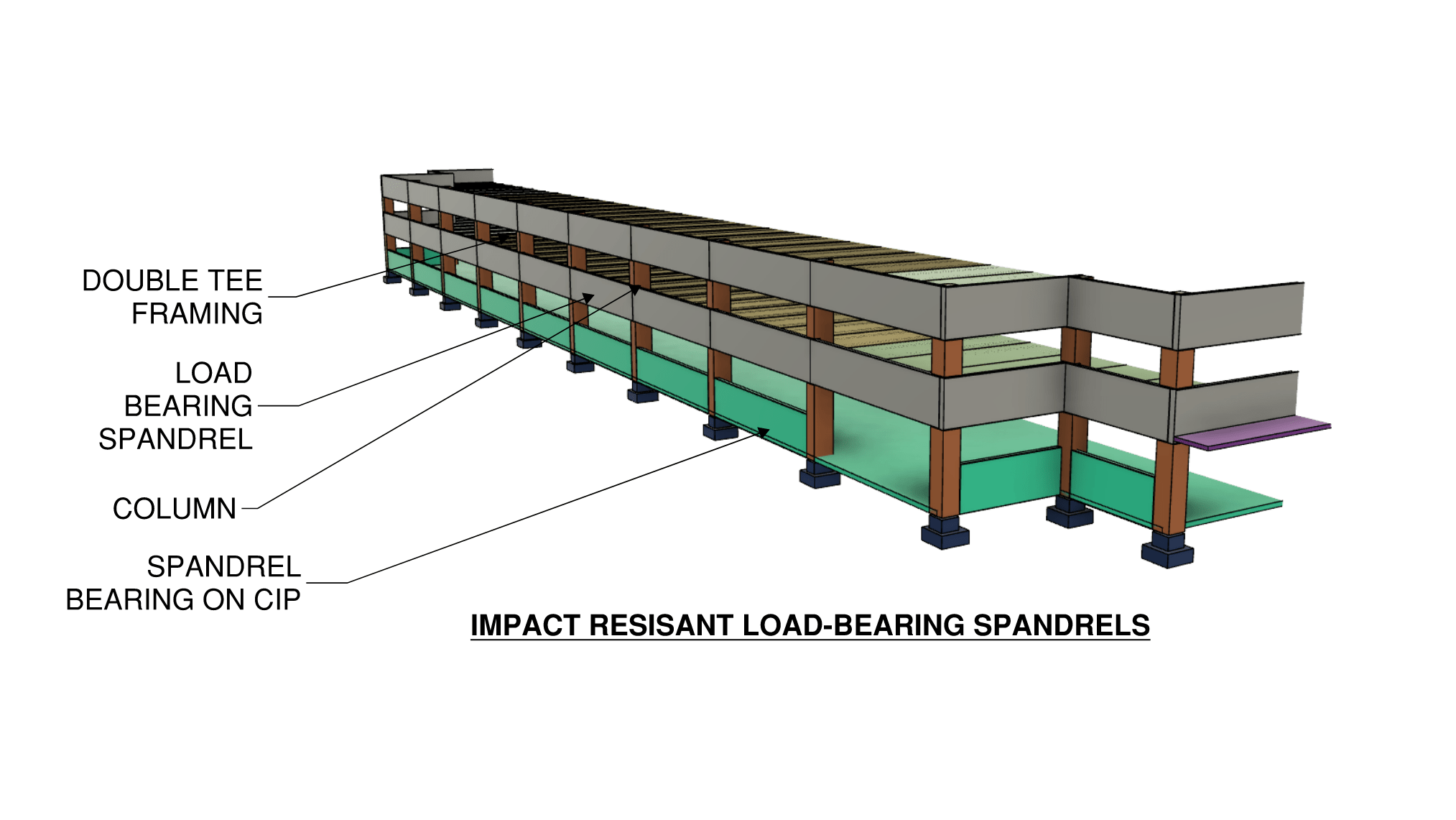

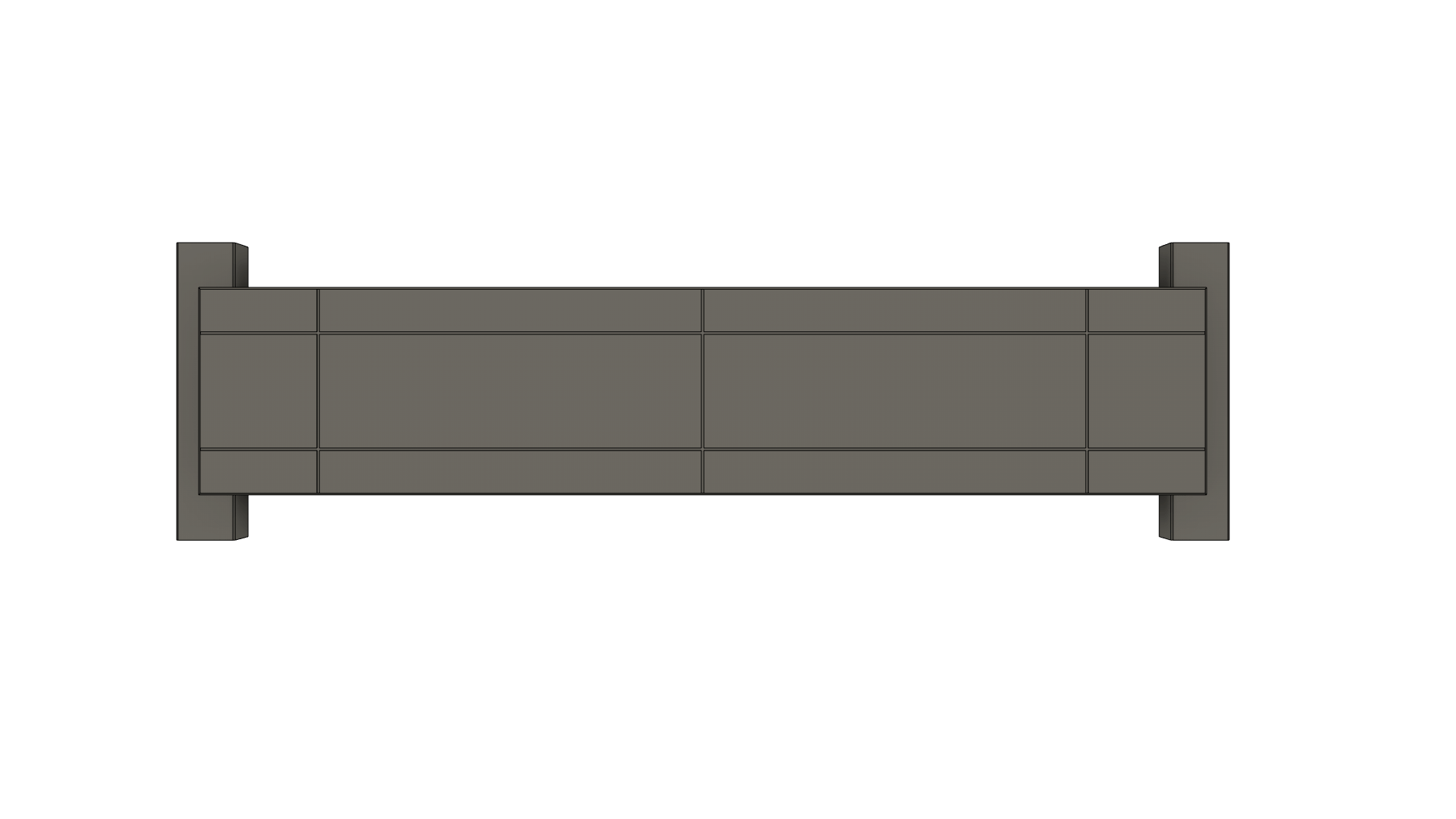

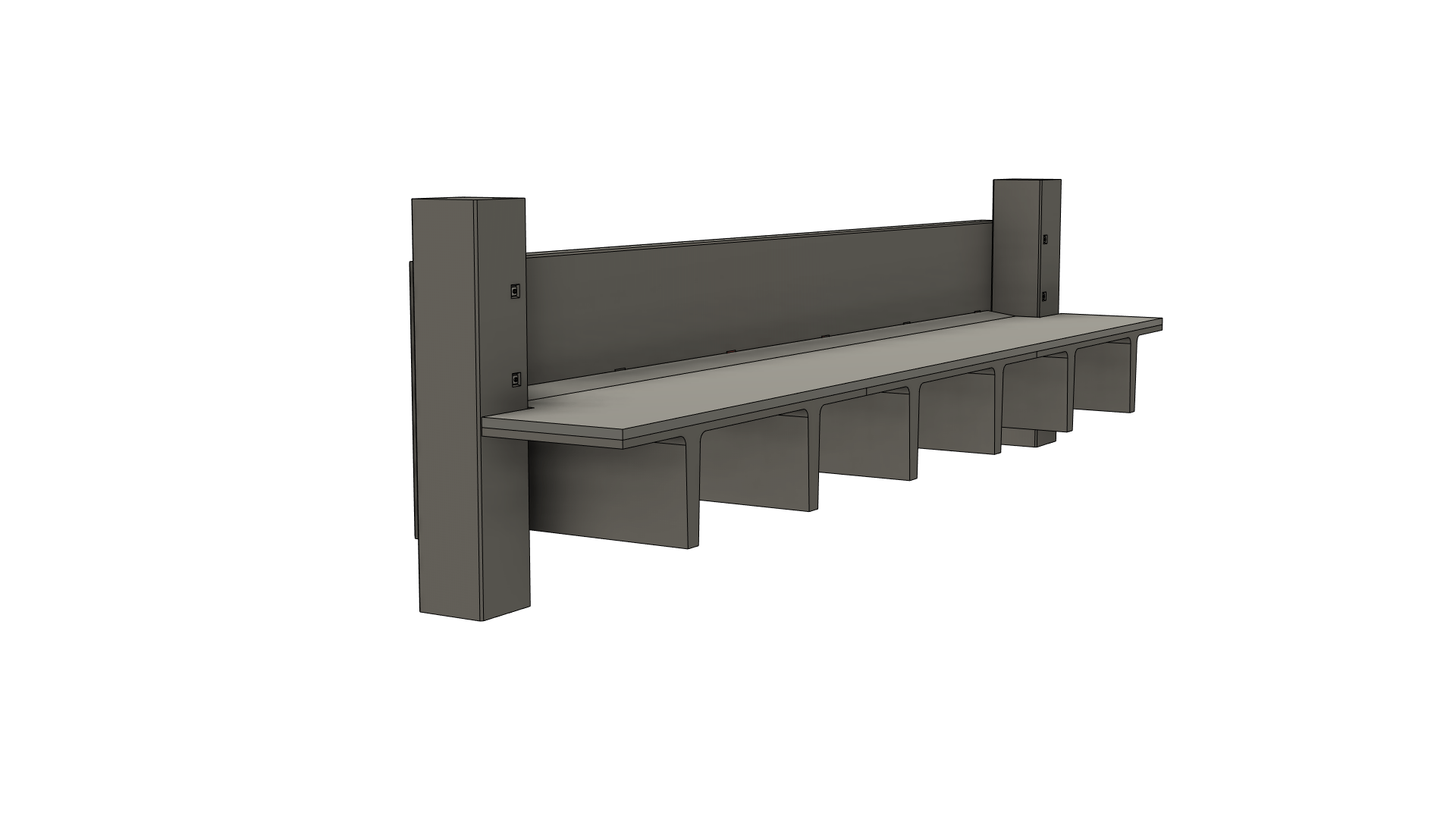

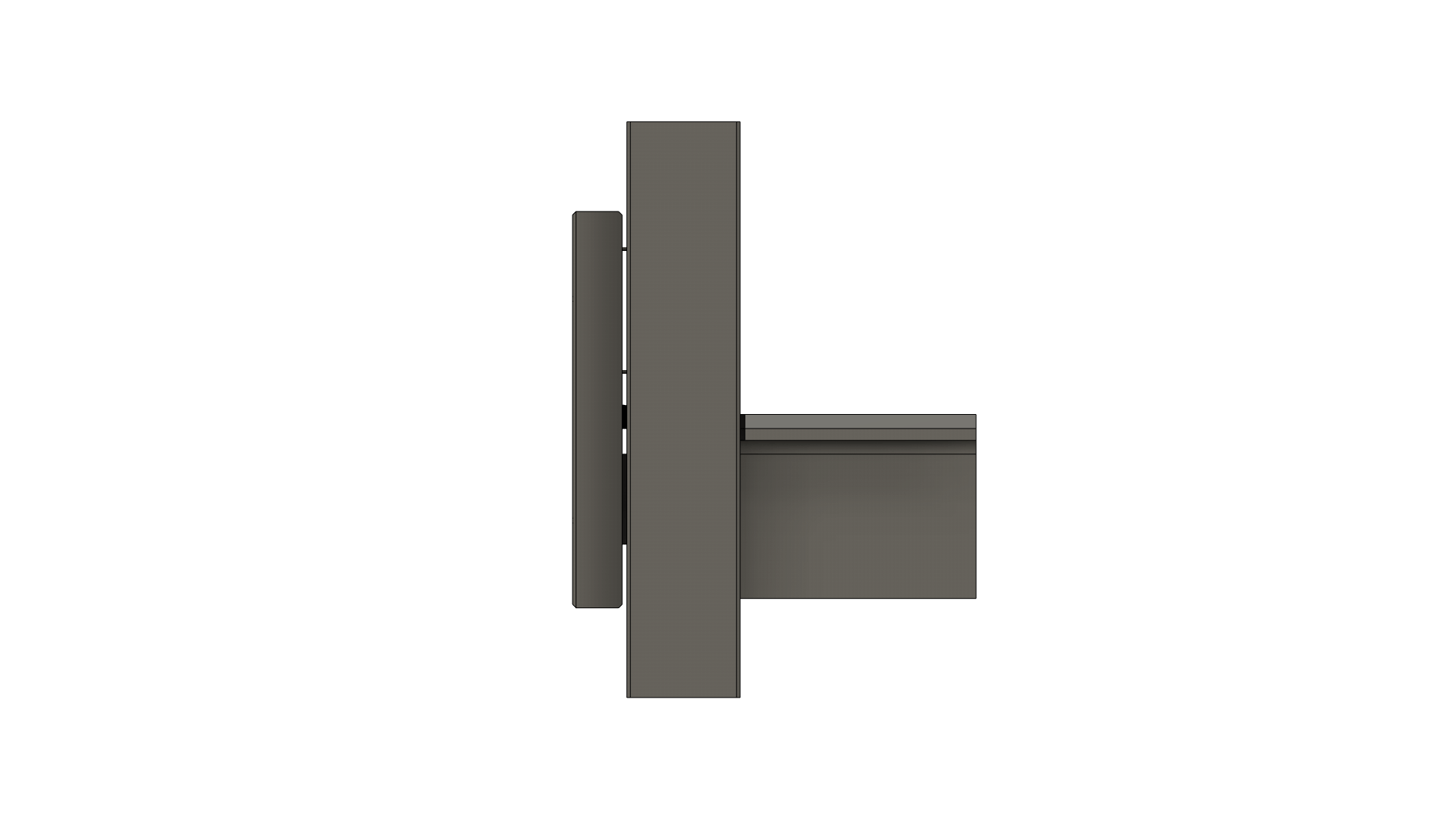

Diagram of impact-resistant load-bearing spandrels, labeling double tee framing, load-bearing spandrel, column, and spandrel bearing on cap. Gray wall-mounted shelf bracket with two vertical supports and a horizontal shelf. Gray technical schematic of a segmented rectangular component with protruding end tabs. Gray door closer arm hinge mechanism shown in 3D rendering against white background. Construction workers install a long concrete walkway along the side of a modern building with a dark textured facade. A multi-story beige concrete parking structure with open levels and spandrel panels under a clear blue sky. Multi-story beige parking garage with open parking bays and windows under a partly cloudy sky. Multi-story beige parking structure with a ramp entrance, lined with young trees along a paved walkway under a clear blue sky. Large concrete formwork panel being installed at a construction site, with a multi-story building in the background.

3D Viewer

3D Viewer Tools



  • 3D Viewer Functions:
  • Move, Span, Zoom Assemblies
  • Isolate Single Components in View
  • Explode Assembly Single Components
  • Use Markup to Sketch Details
  • General Measurements for Concept
  • Print Views
