Product Information

The design criteria, shearwall size/weight all contribute to the fabricated product thickness.  Typically loading bearing shearwalls range from 12” to 24” thick.  Shearwalls can be orientated in a horizontal or vertical application depending on the specific project requirements.

Standard Design Options

  • Shearwall width and height are typically controlled by a combination of transportation limits and weight of panel.  Precast shear walls are typically 12′-0″ wide and under 64,000 lbs.
  • Precast shearwalls can have bearing on both sides with double tee/beam bearing on either cast in corbels or bearing surface connections that are installed in the field.  Corbels installed in field allow access for multiple levels to be erected on a single wall without coming in contact with protruding corbels.

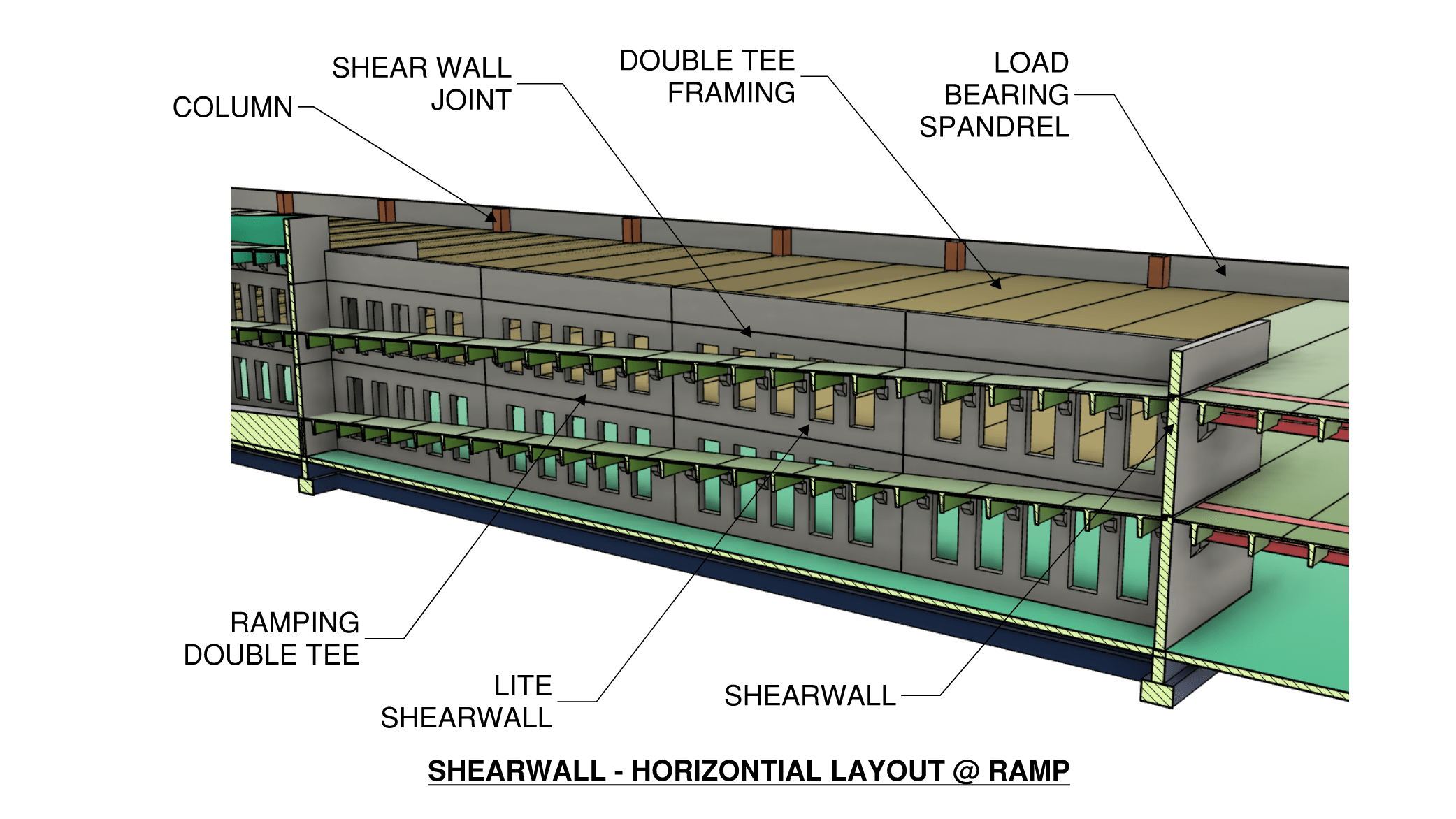

Diagram of a Lite Shear Wall horizontal layout at a ramp, showing a cross-section with labeled components including column, shear wall joint, double tee framing, load bearing spancrel, ramping double tee, lite shearwall, and shearwall. Diagram of a shear wall horizontal layout showing column, shear wall joint, double tee framing, load bearing spanrel, beam, and supporting columns. Diagram of a Lite Shear Wall showing double tees connected by corbels to form the wall structure. Crane lifts tall concrete shear wall panels into place at a construction site with workers and a building in the background. A row of concrete foundation wall forms standing upright on a construction site, with rectangular openings and a gravel ground. Crane lifts a large concrete shear wall panel onto the steel structure of a building under construction. Unfinished concrete structure with a row of cylindrical columns supporting a large overhead slab in an empty, under-construction interior space.

3D Viewer

3D Viewer Tools



  • 3D Viewer Functions:
  • Move, Span, Zoom Assemblies
  • Isolate Single Components in View
  • Explode Assembly Single Components
  • Use Markup to Sketch Details
  • General Measurements for Concept
  • Print Views
