R-Values - 4" of Insulation + 6" Interior Concrete Wythe

Typical R-Values shown for CarbonCAST technology.  Variances in the wall panel detailing such as solid spots for windows, doors or anchoring of loads will reduce the overall panel R-value and should be evaluated on a case by case basis.

Insulation Type R/in. @ 75 Degrees R-Value
Type EPS 1.0# 3.85 16.69
Type EPS 1.25# 3.92 16.97
Type EPS 1.5# 4.17 17.97
Type EPS 2.0# 4.35 18.69
Type Neopor 1.5# Type VIII 4.70 20.11
Type XPS 5.00 21.29

Product Information

High Performance insulated CarbonCAST panels are designed specifically to meet the R-Value and design project requirements of your project. Typical insulated cladding panels have a 3″ outer wythe of concrete, 4″ of EPS type insulation and 3″ of inner concrete. Load bearing panel thickness can vary, however a typical panel would consist of 3″ outer wythe of concrete, 3-4″ of EPS type insulation and 6″ interior structural wythe of concrete.

Standard Design Options

To maximize the rate of install, and cost efficiency, panels should be designed to load onto 48,000 pound or 64,000 pound trailers.  In the Pacific Northwest panels should be design for widths of 12’ nominal (11’-11-3/4”) or less when traveling on four lane routes.  If 2 lane travel routes are required 10’ nominal (9’-11-3/4”) can be used to mitigate time and cost impacts of pilots.

  • EPS Insulation is preferred type for use with the CarbonCast wythe system.
  • Continuous Insulation: Meets ASHRAE 90.1 standards.
  • Exterior wythes can have embedded thin brick for a clay finish option.
  • Exterior Wythe architectural mix with structural lower cost interior mix design, reducing. cost of higher end mixes.Weatherproof nailers can be requested at panel blockouts for mounting of doors and windows etc.
  • Structural IP panels can be designed to carry sunshade loading.
  • Embedded electrical conduit + items required for hidden electrical.

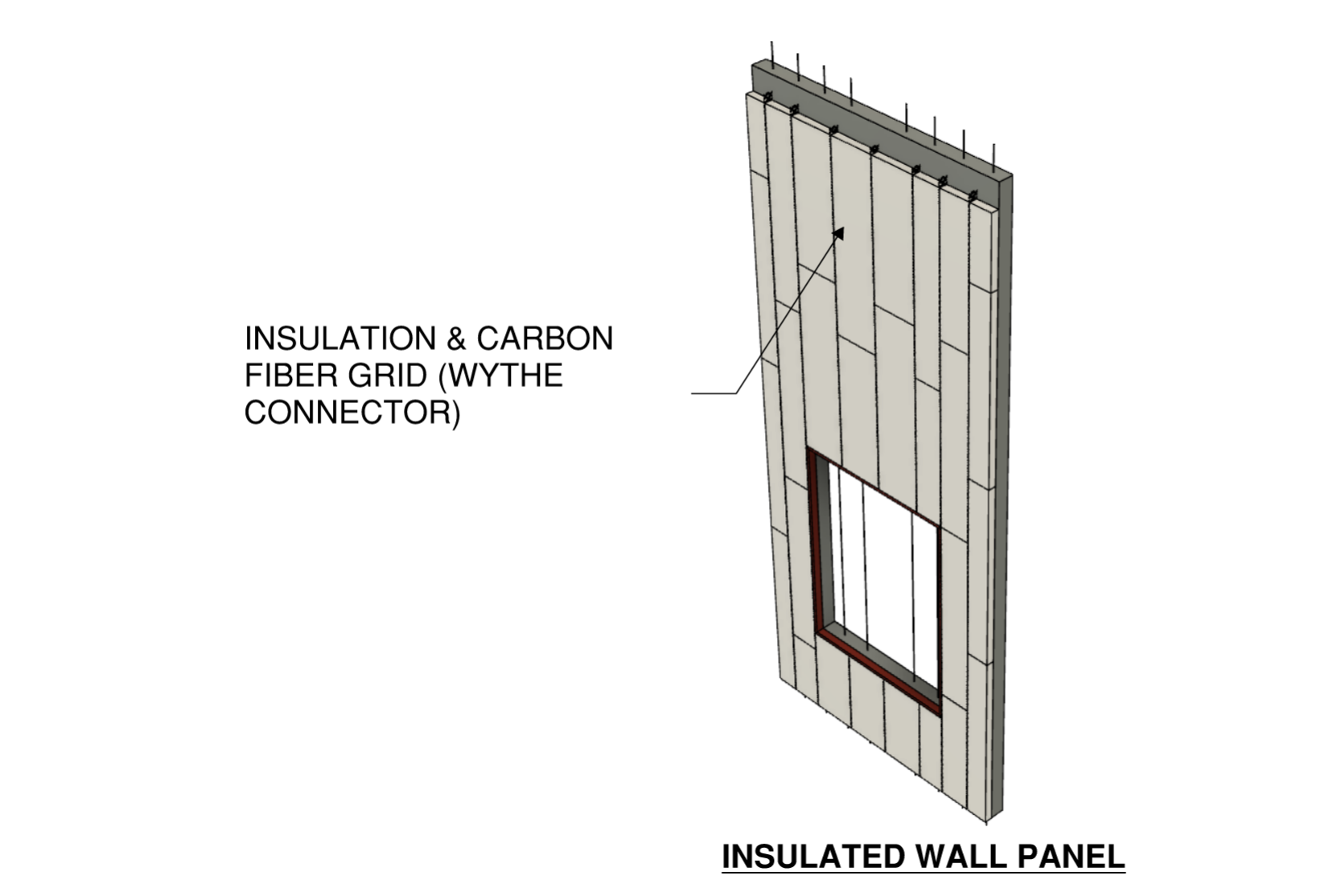

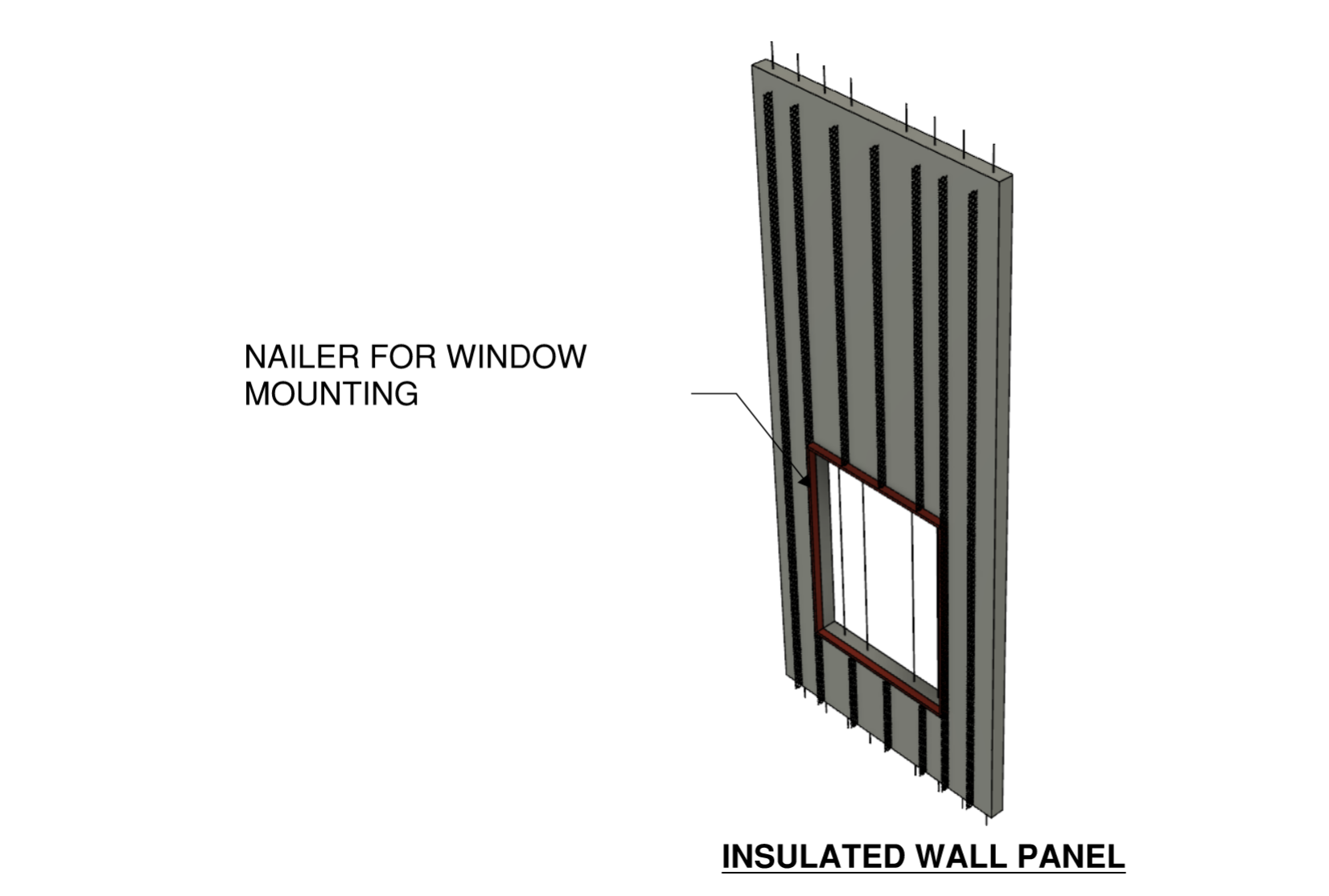

Insulated wall panel showing exterior wythe strand and reinforcing grid with window opening. Diagram of an insulated wall panel showing insulation and carbon fiber grid with a window opening. Insulated wall panel with window and a labeled nailer for window mounting. Insulated wall panel diagram showing an interior concrete wythe with a window opening. Mustang High School exterior showing the school name and mustang logo on the building facade under a clear blue sky. A polar bear lies on grass inside a glass enclosure, illustrating the insulated wall panel system. Exterior insulated wall panel system showing horizontal wood-effect siding above stone veneer with vertical corner boards and windows. A large insulated wall panel is being hoisted by a crane at a construction site with workers in hard hats and safety vests nearby. A modern building with a concrete upper structure and a lower wall decorated with a colorful mural of butterflies and birds, set against a backdrop of trees and a metal lattice structure. Modern commercial building with tall vertical insulated wall panels along the facade, set against a twilight sky.
