Span Length

70′ 90′ 110′ 130′ 150′ 170′ 190′ Span Length BT48 70′ - 100′ BT60 85′ - 120′ BT72 100′ - 145′ BT84 125′ - 165′ BT90 165′ - 185′

Section Properties (gross)

Typical Girder Spacing – 5ft through 7ft

Product Name Depth (in) Area (in2) Yb (in4) Ixx (in4) Iyy (in4) PLF @ 165

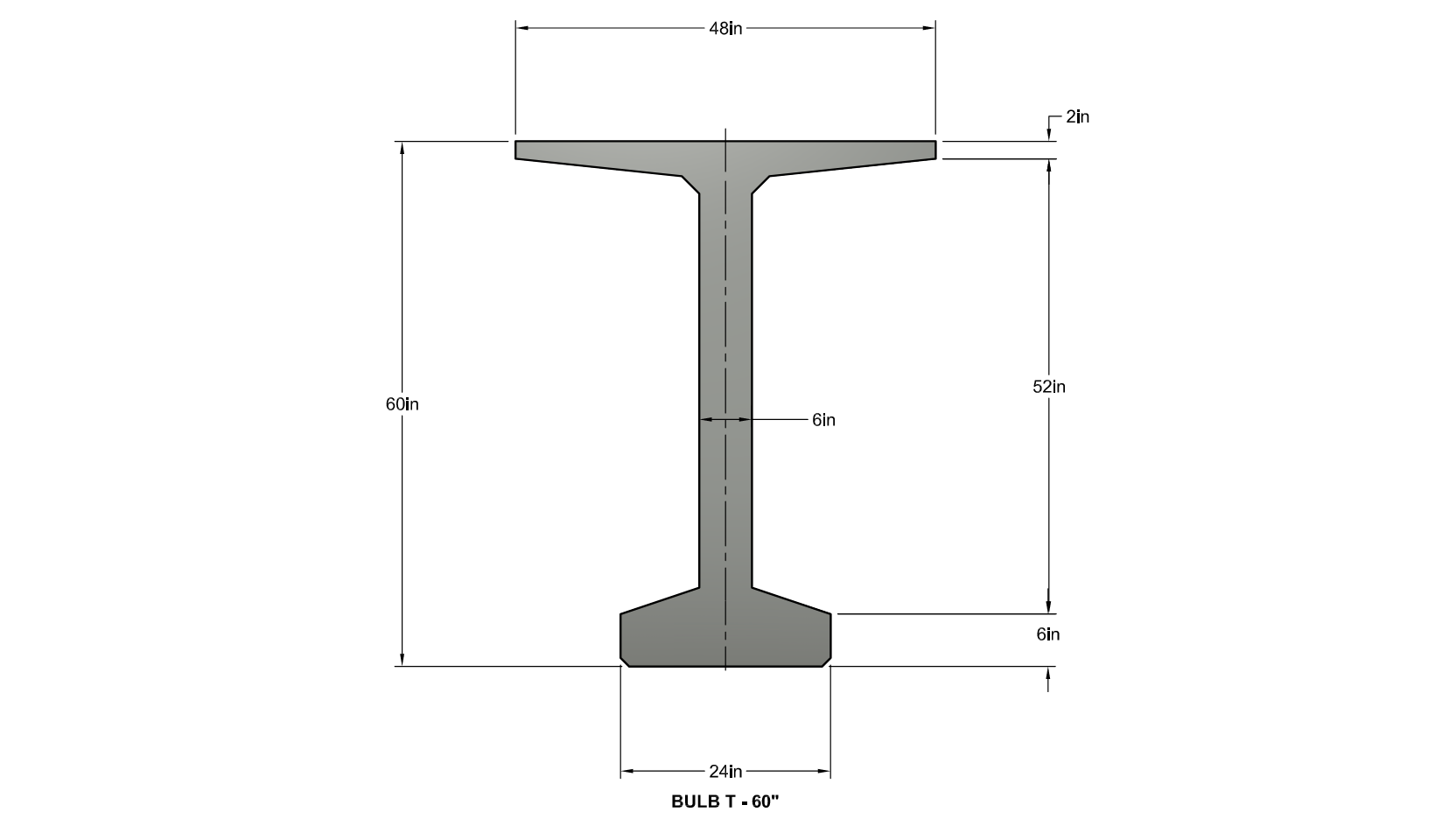

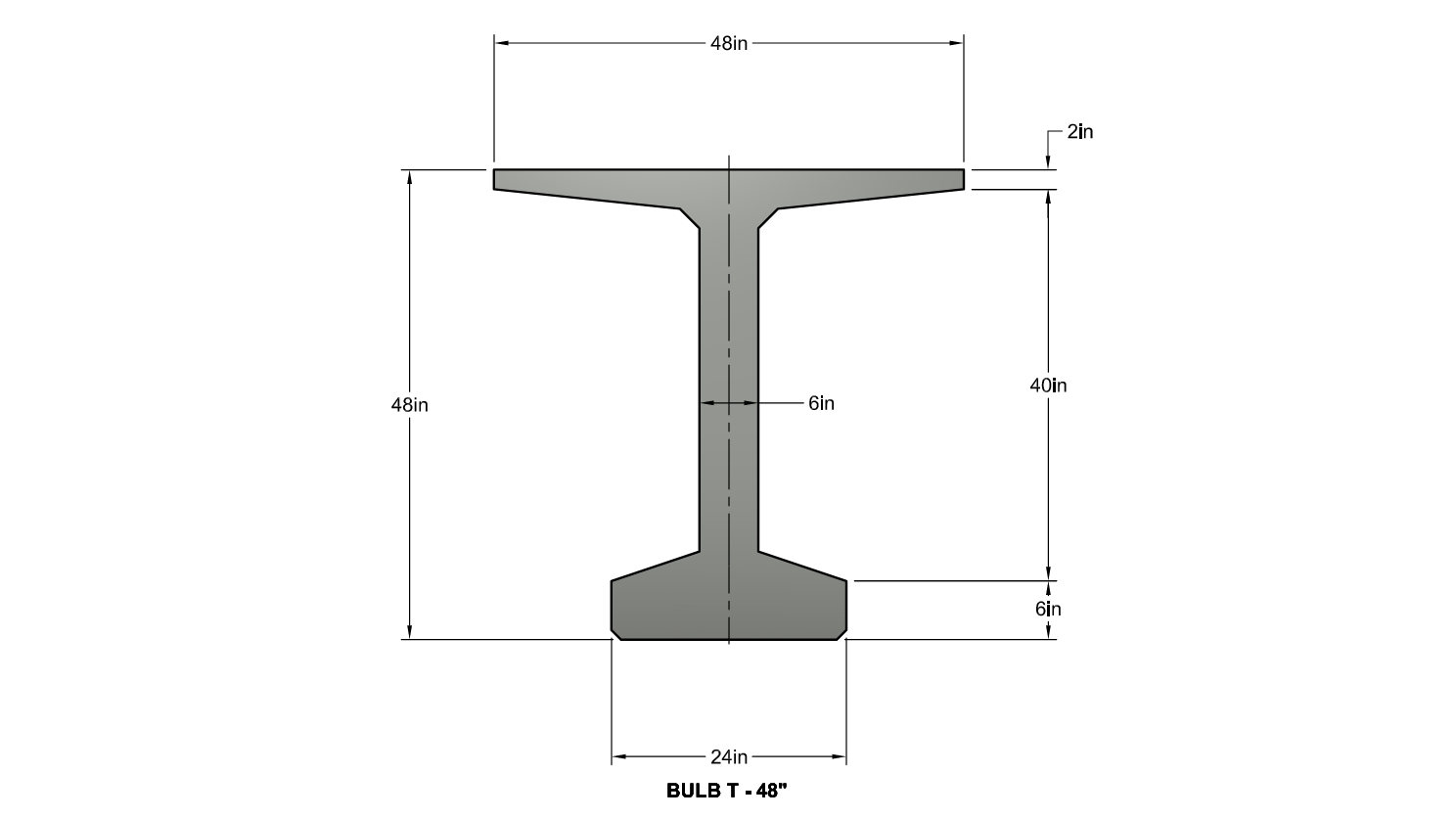

BT48 48" 557 24.5 177736 32986 640
BT60 60" 629 30.3 308722 33202 722

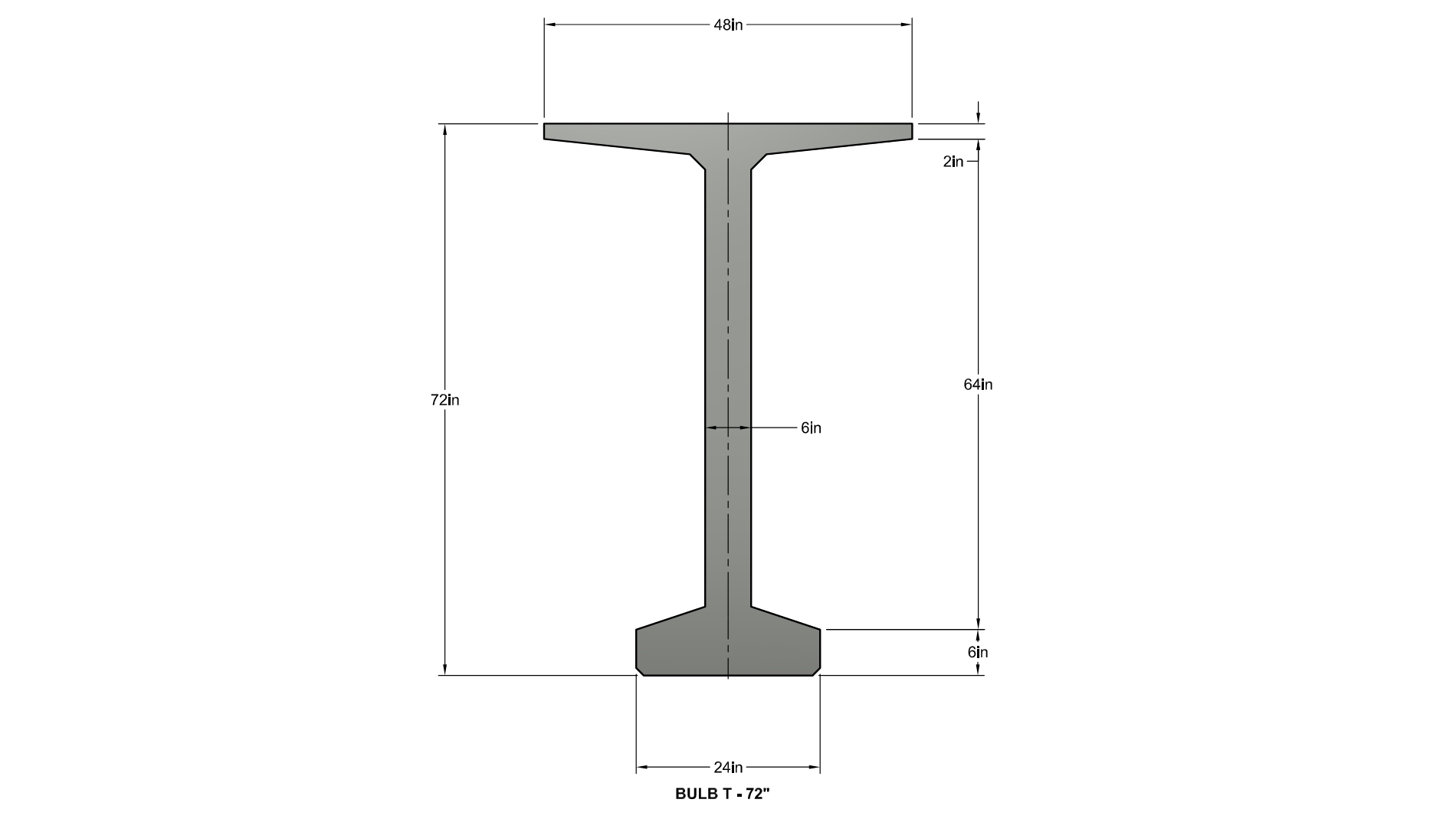

BT72 72" 701 36.4 484993 33418 805

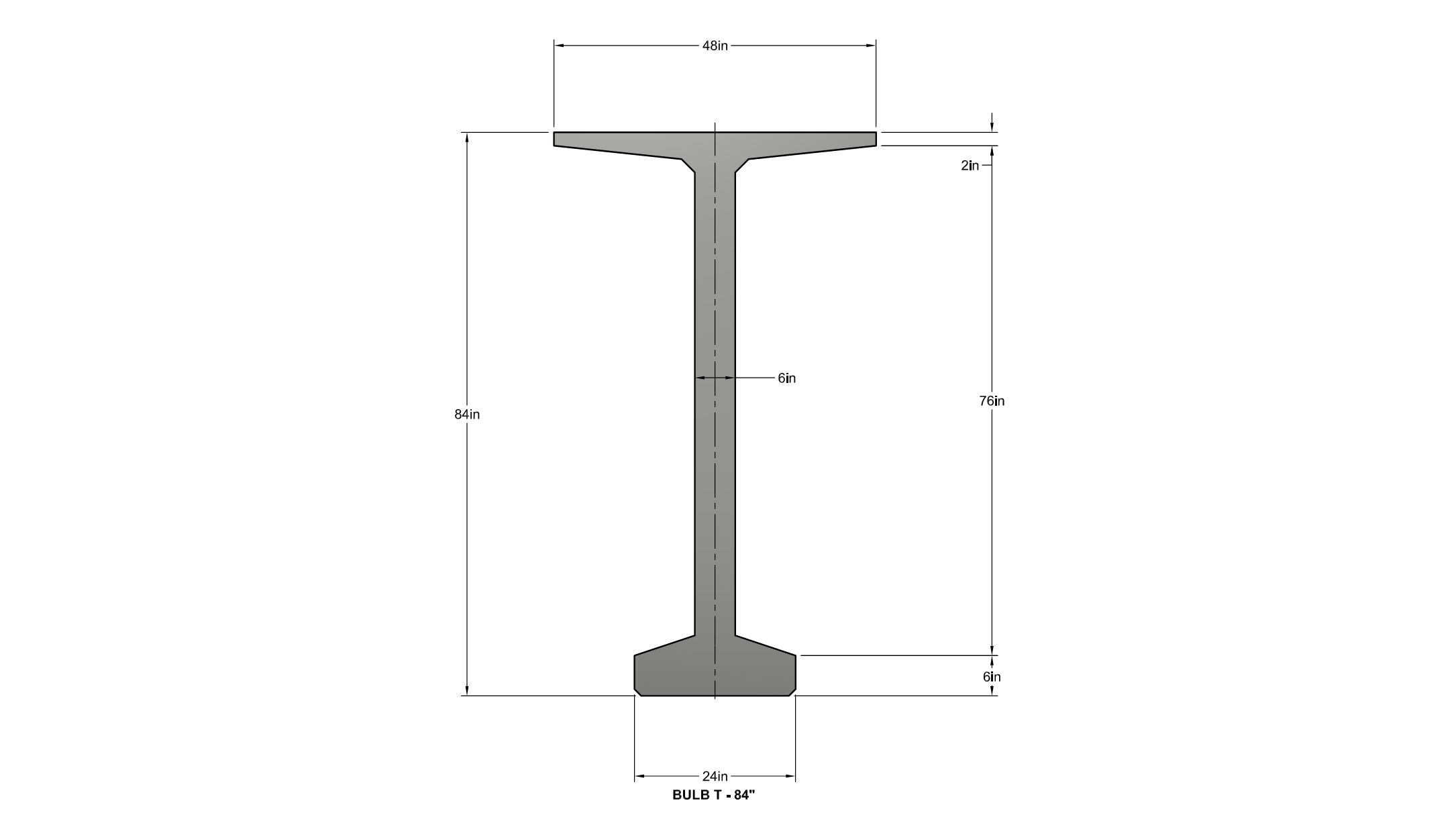

BT84 84" 773 42.3 711733 33634 888

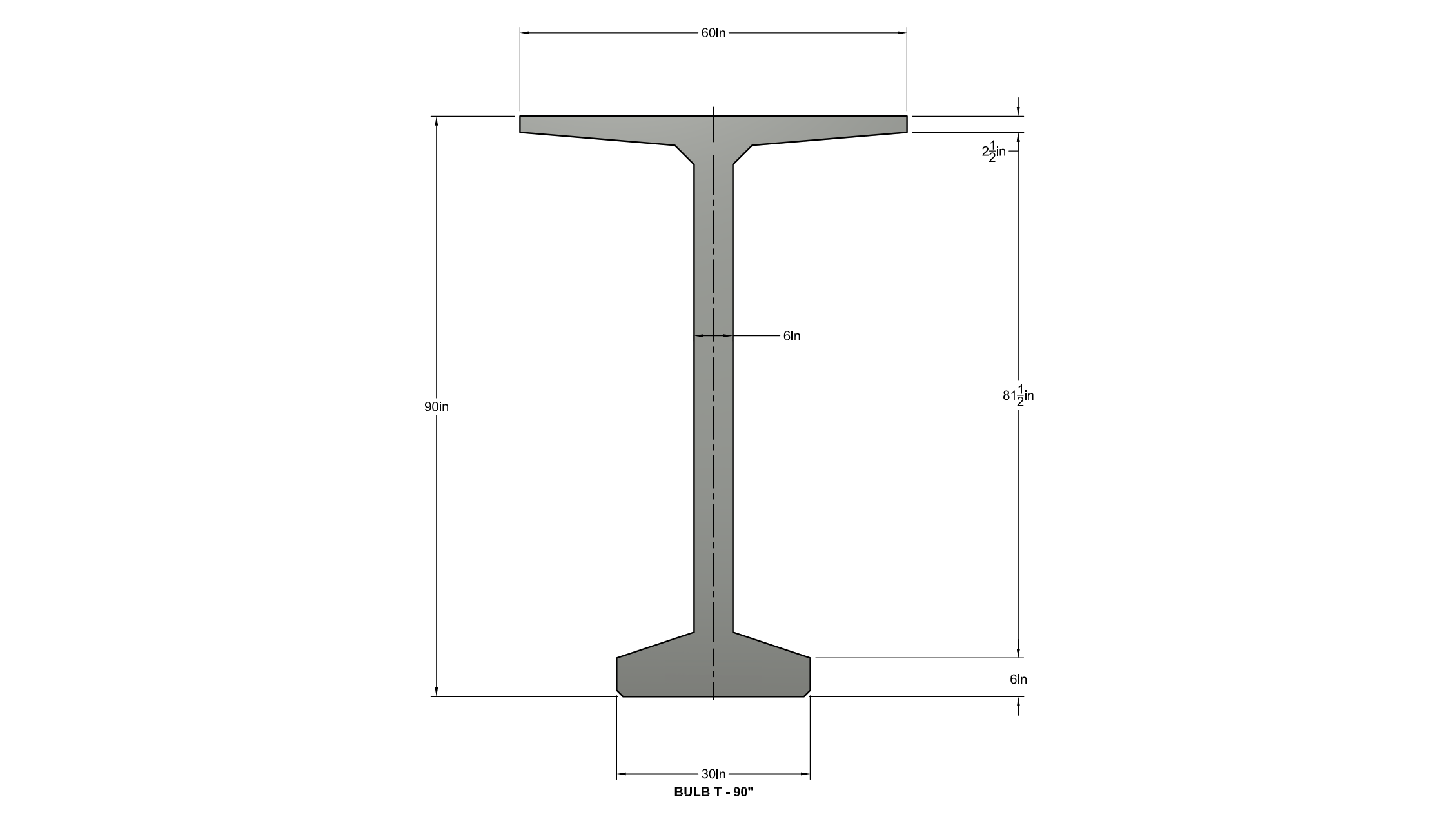

BT90 90" 971 49.0 1242172 73940 1115

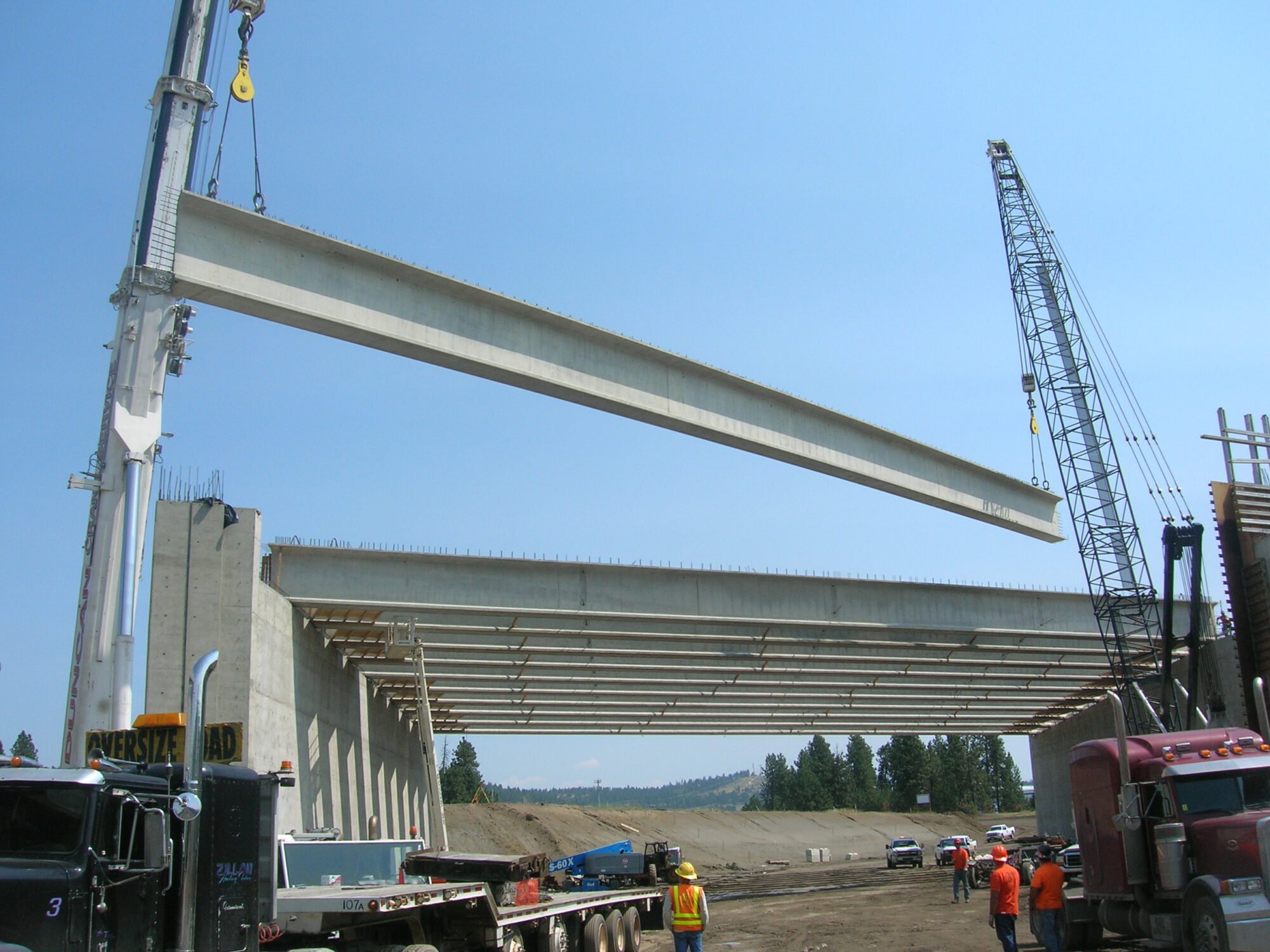

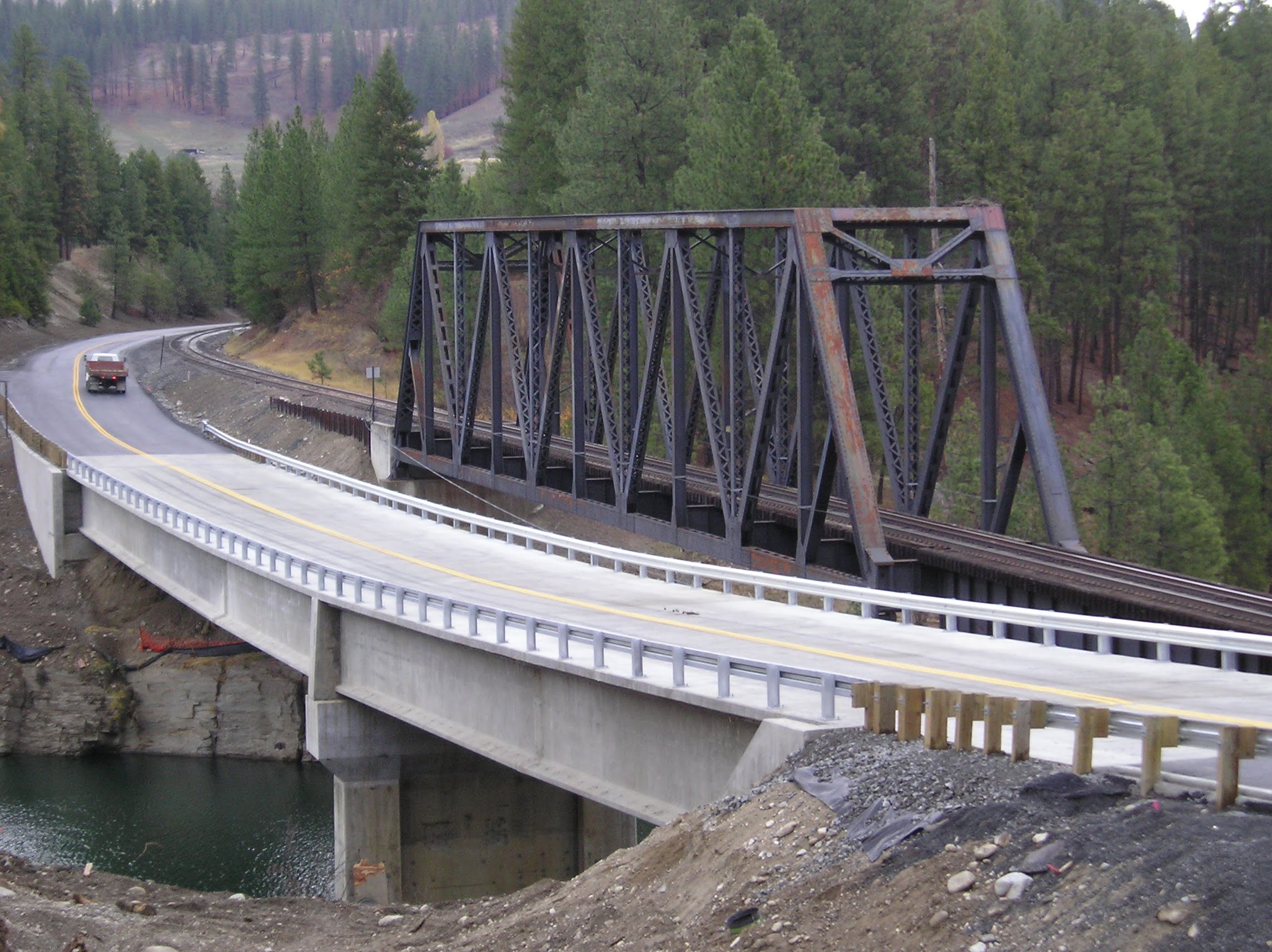

Product Information

Knife River can cast Bulb Tee girders in 48″, 60″, 72″, 84″, 90″ depths, designed for use with a composite concrete field-cast deck

Standard Design Options

  • Skewed Top Flange applications
  • Cast in inserts or hole for diagraph reinforcing
  • Cast in inserts for mounting utility brackets
  • Top flange/web holes for mounting deck forming brackets
