Product Information

Precast/Prestressed beam depths will vary based on the specific project design.  Common beam shapes are Inverted Tee, L-Shaped and rectangle profiles.  Prestressed beams are typically supported by columns and used for to support double tee, hollowcore or solid slab framing.

Standard Design Options

  • Prestressed beams can be used to support other framing systems (CLT) given their structural ability for longer spans.

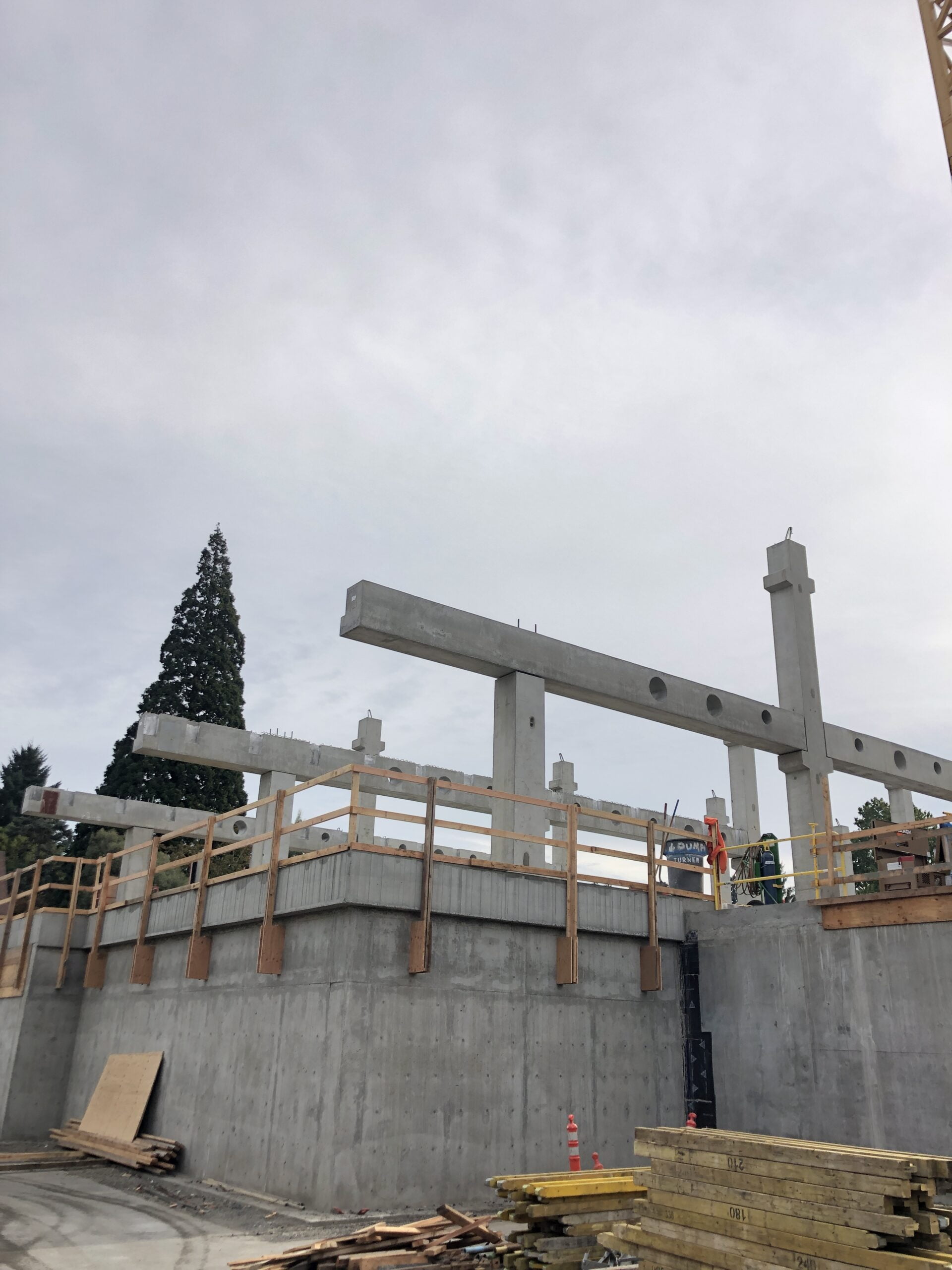

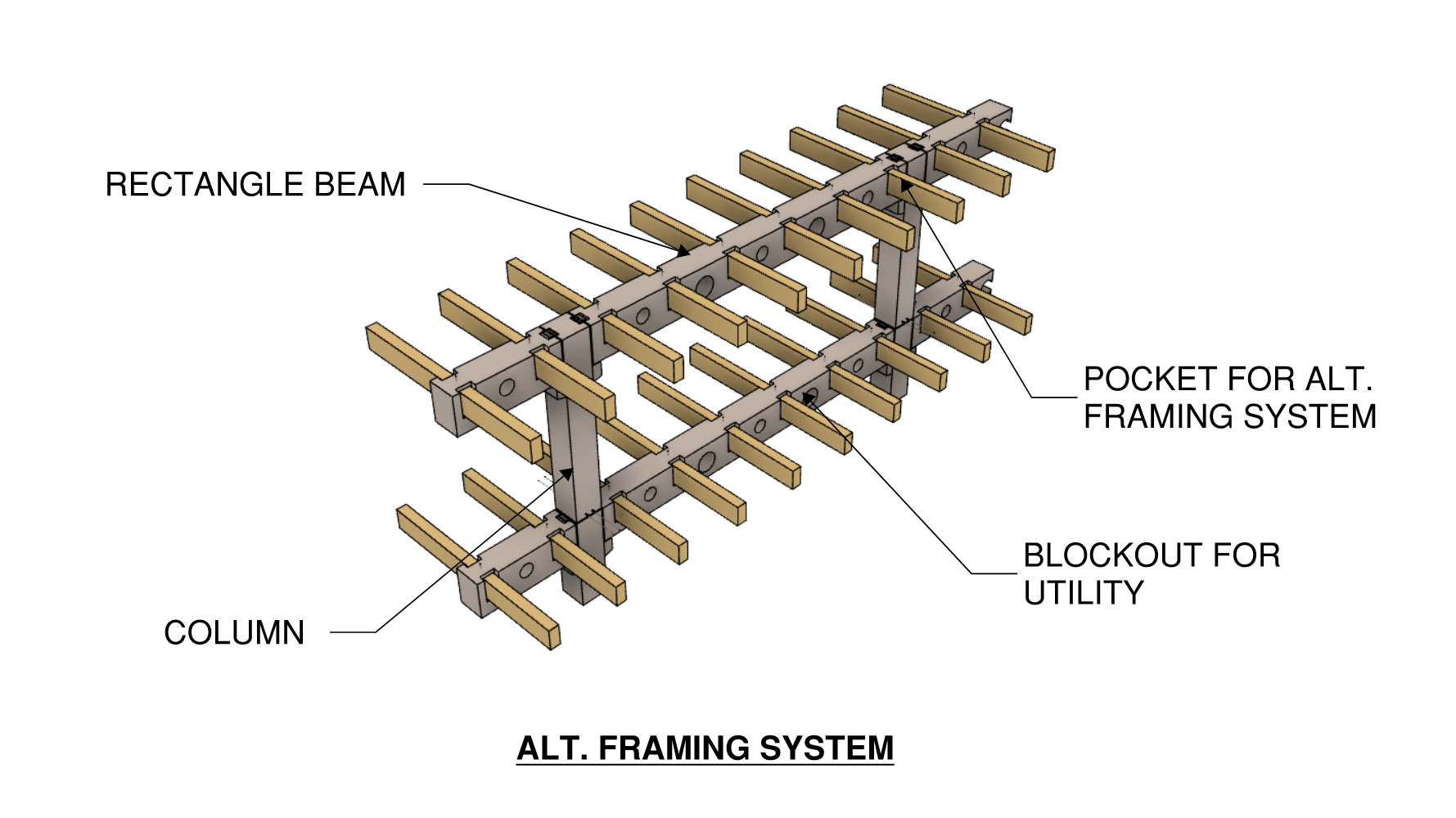

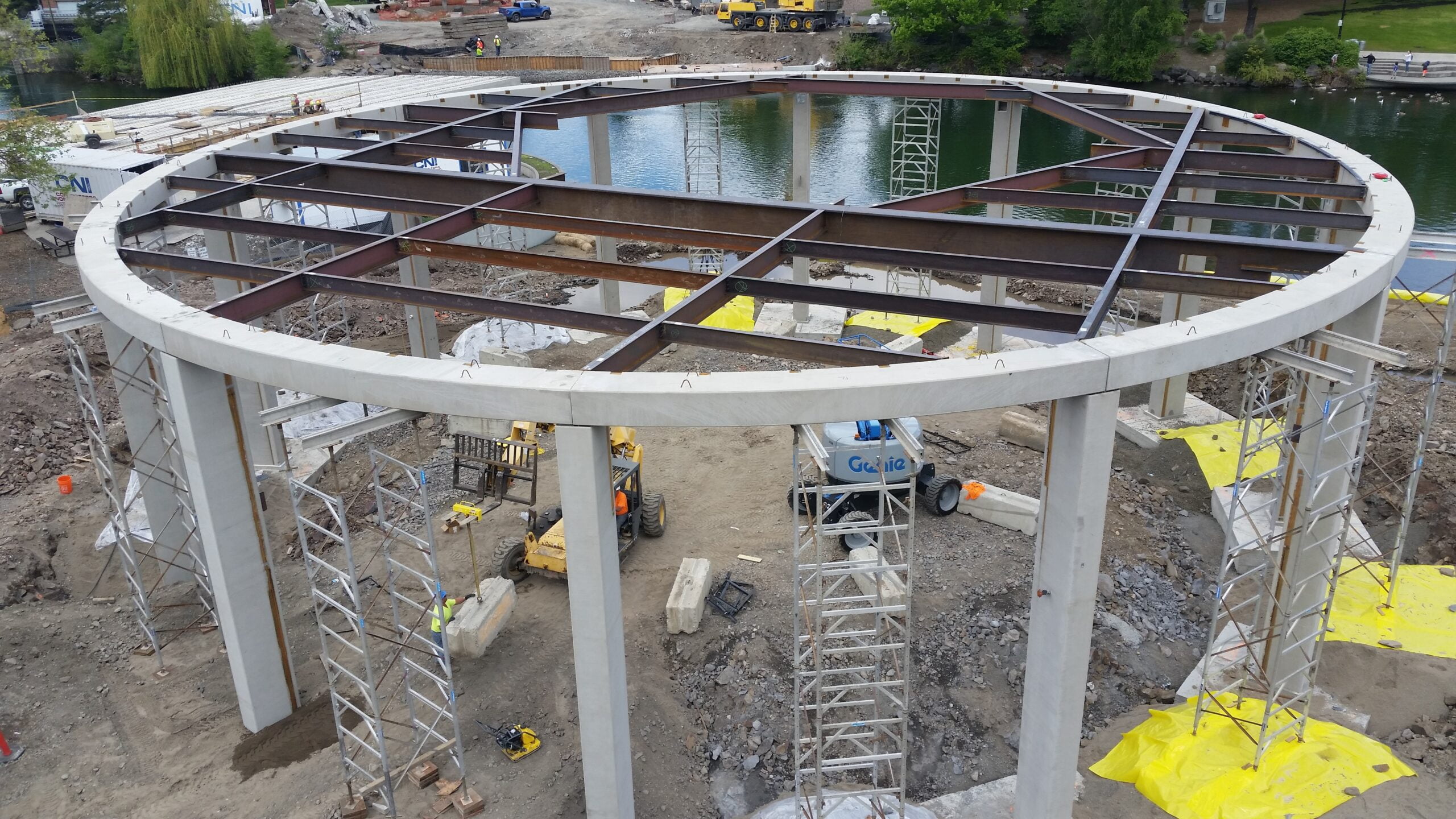

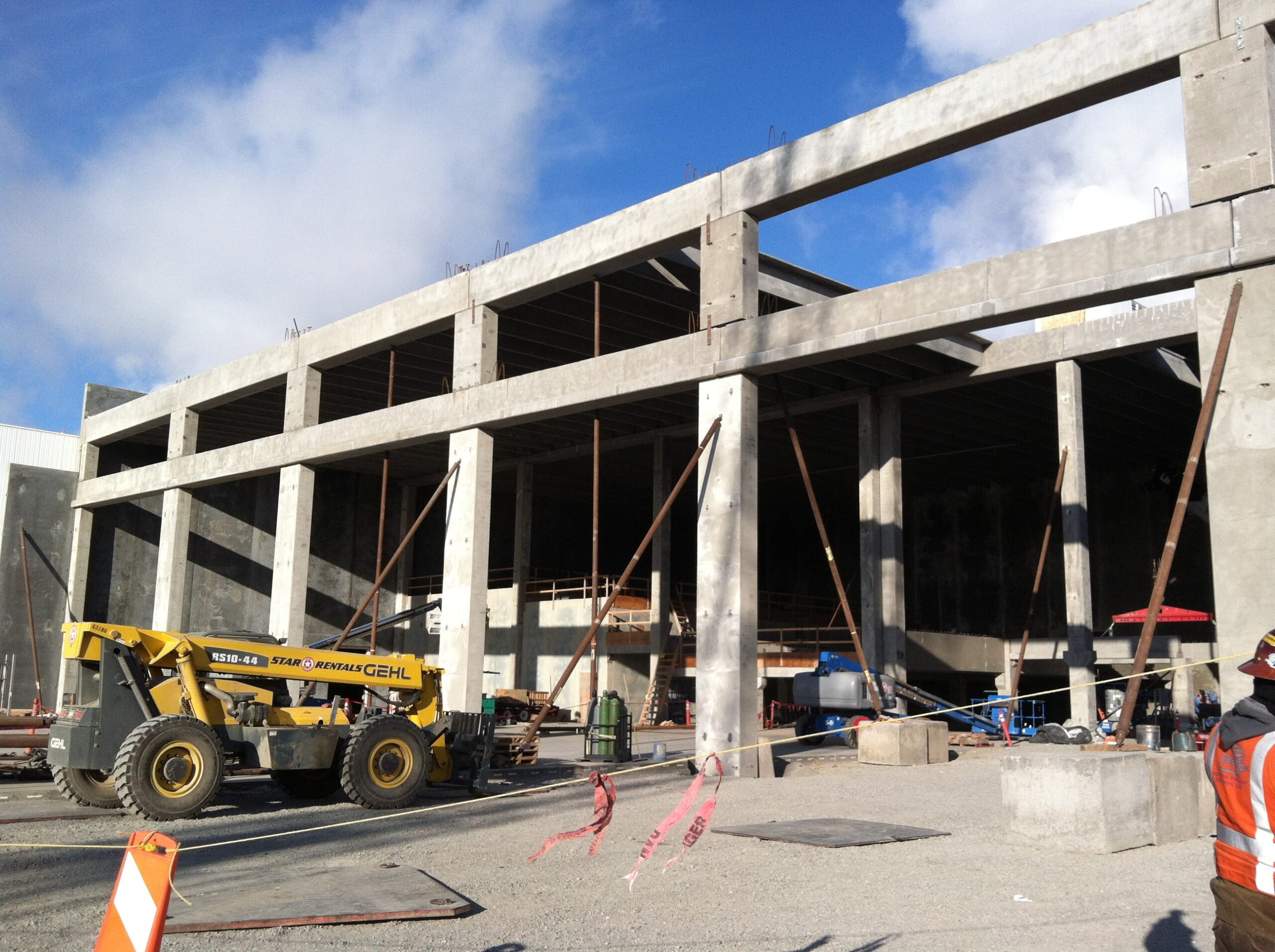

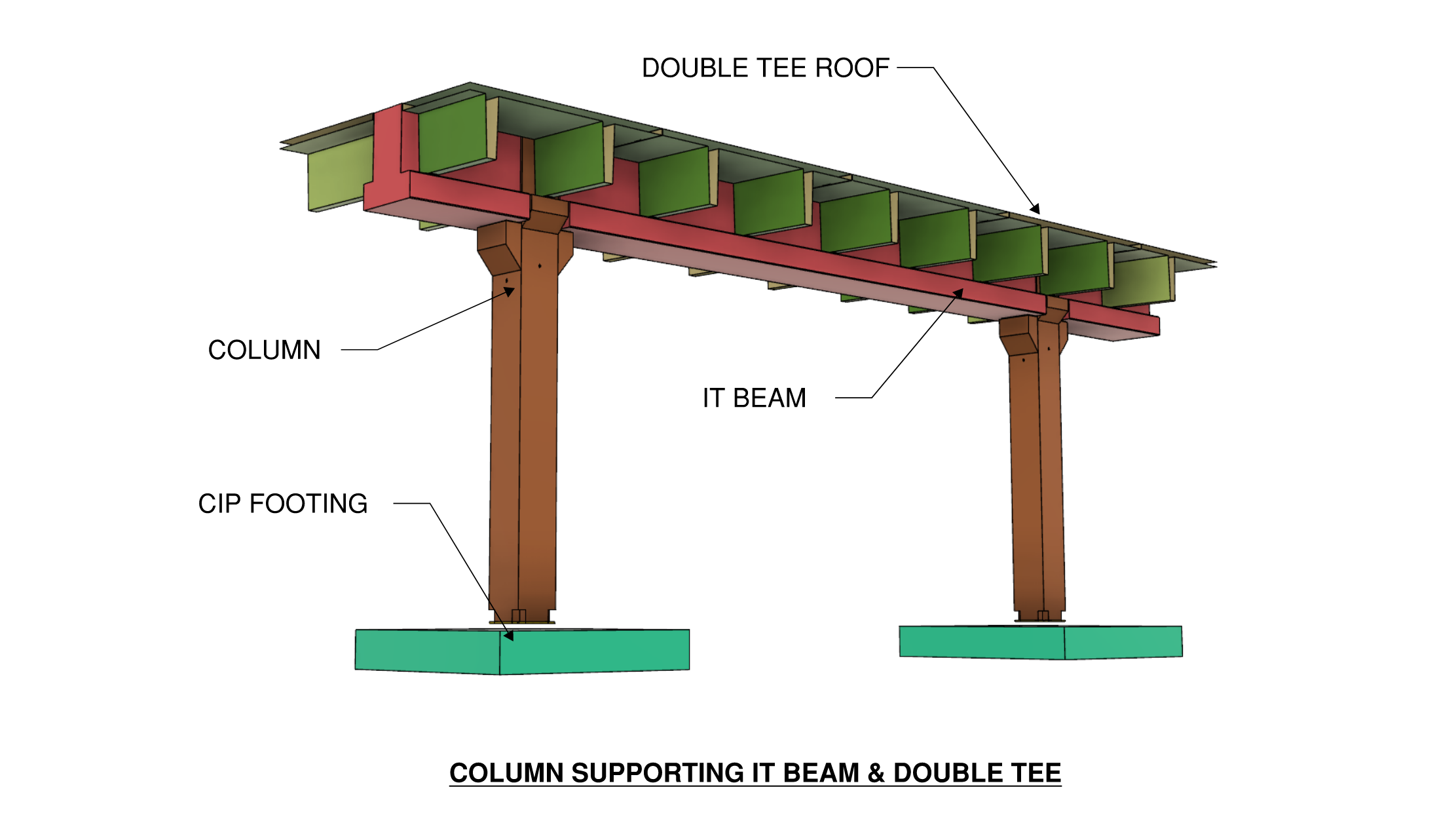

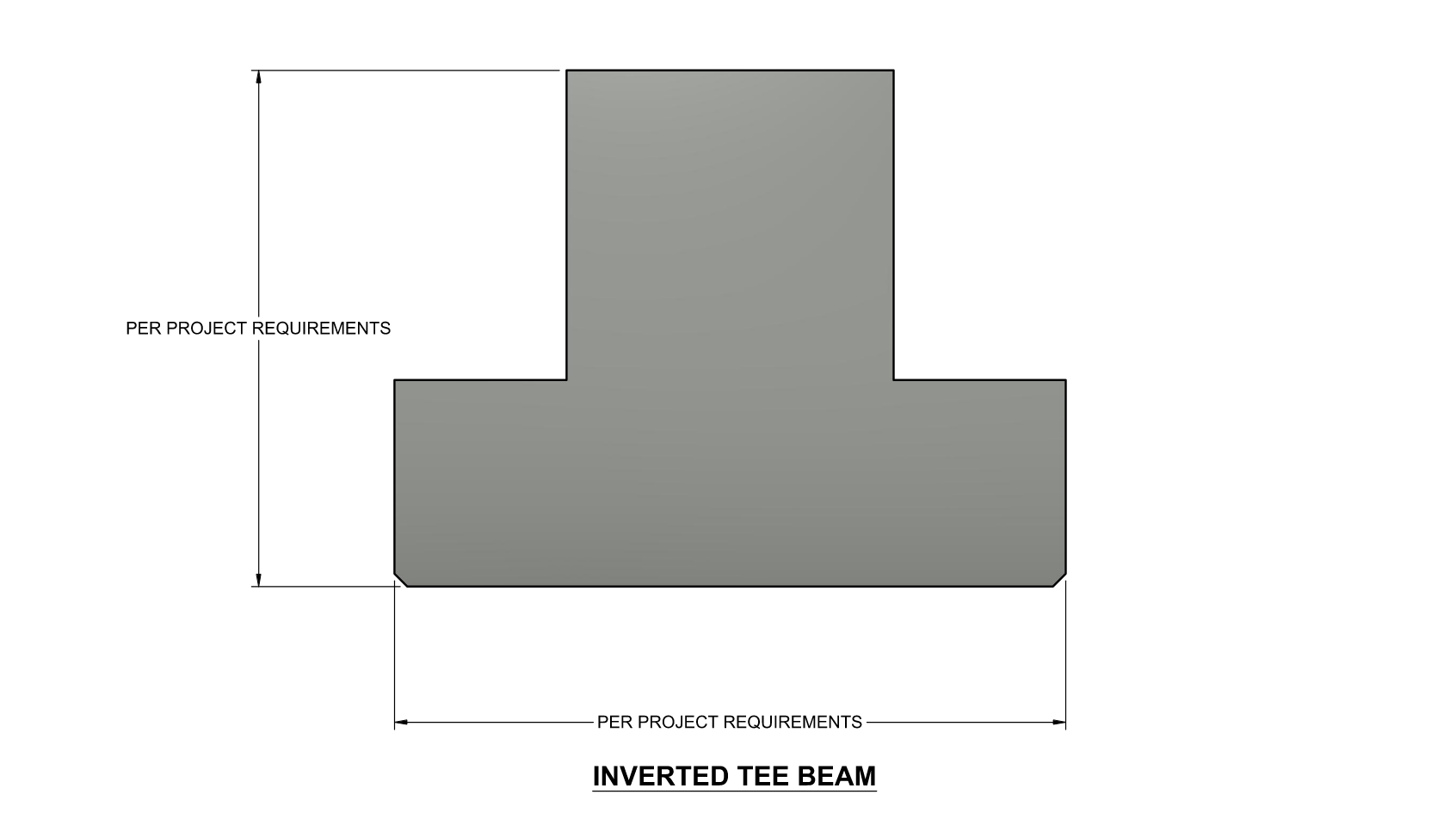

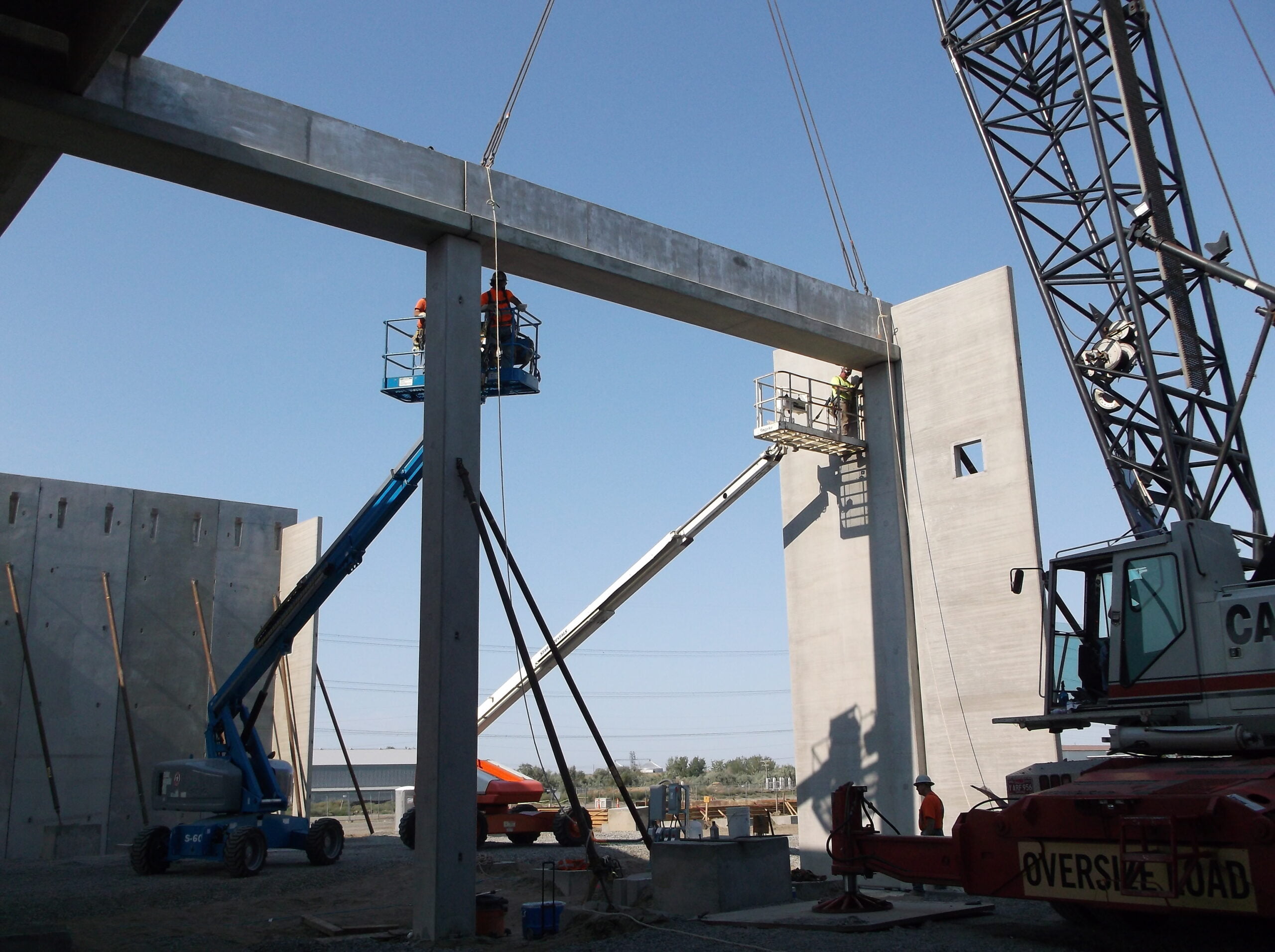

Diagram of a column supporting an I-T beam and double tee roof, with labeled off-footing and roof components. Diagram of an alternate framing system showing rectangle beams, a column, a pocket for an alternate framing system, and a blockout for utility. A technical drawing of an inverted tee beam cross-section with overall height and width dimensions labeled for project requirements. L-shaped beam technical drawing showing dimensions labeled per project requirements. Rectangular beam diagram showing width and height dimensions with labeled measurements. Concrete building frame under construction with workers, yellow heavy machinery, and orange safety cones under a blue sky. Two construction workers on lift platforms install a large concrete beam at a construction site with a crane and concrete walls. Circular concrete structure under construction at a building site, featuring white columns supporting a metal framework with water visible inside. Concrete structure under construction featuring vertical pillars and horizontal beams, likely part of a torii gate or similar architectural design, surrounded by wooden formwork.

3D Viewer

3D Viewer Tools



  • 3D Viewer Functions:
  • Move, Span, Zoom Assemblies
  • Isolate Single Components in View
  • Explode Assembly Single Components
  • Use Markup to Sketch Details
  • General Measurements for Concept
  • Print Views
